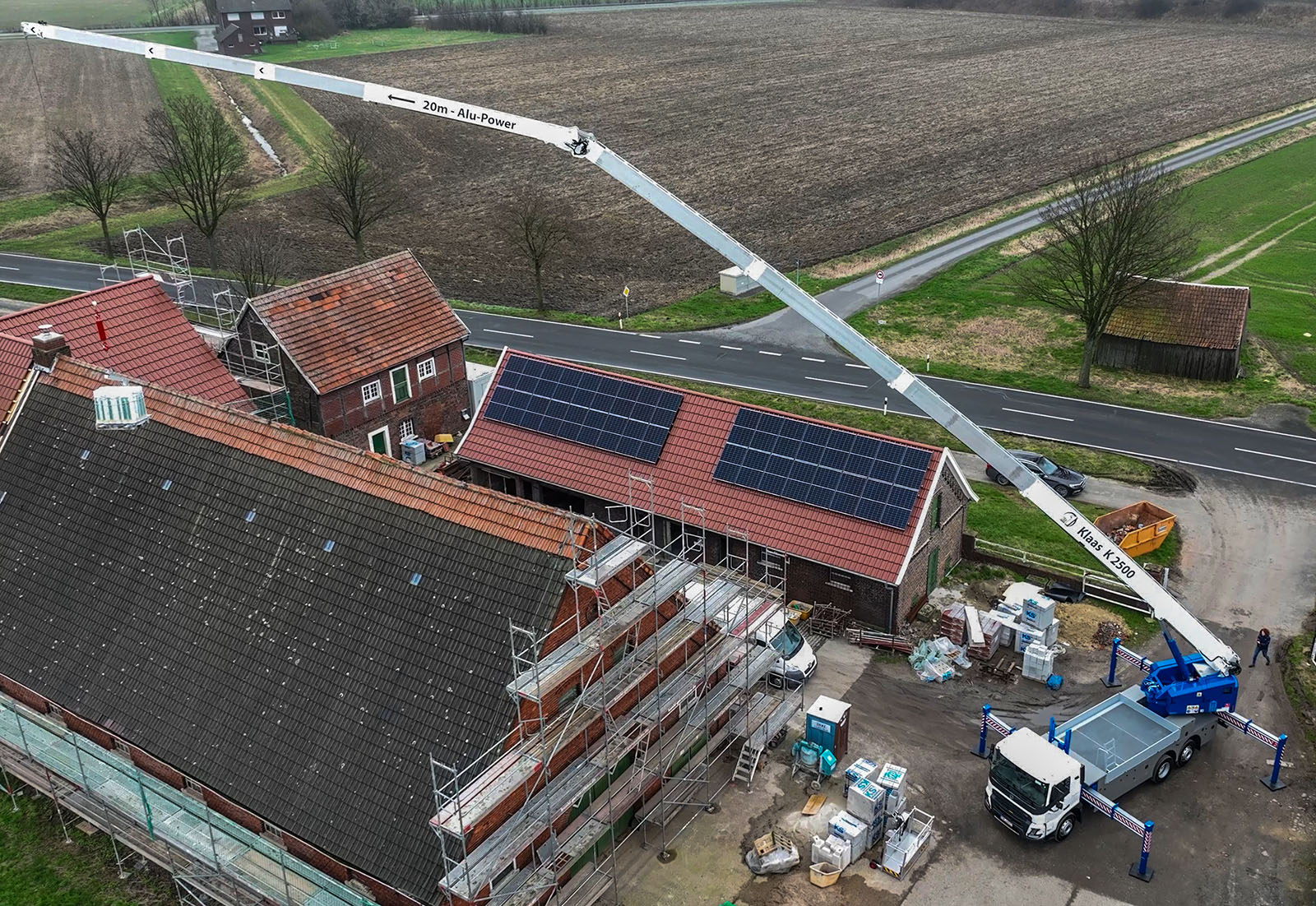

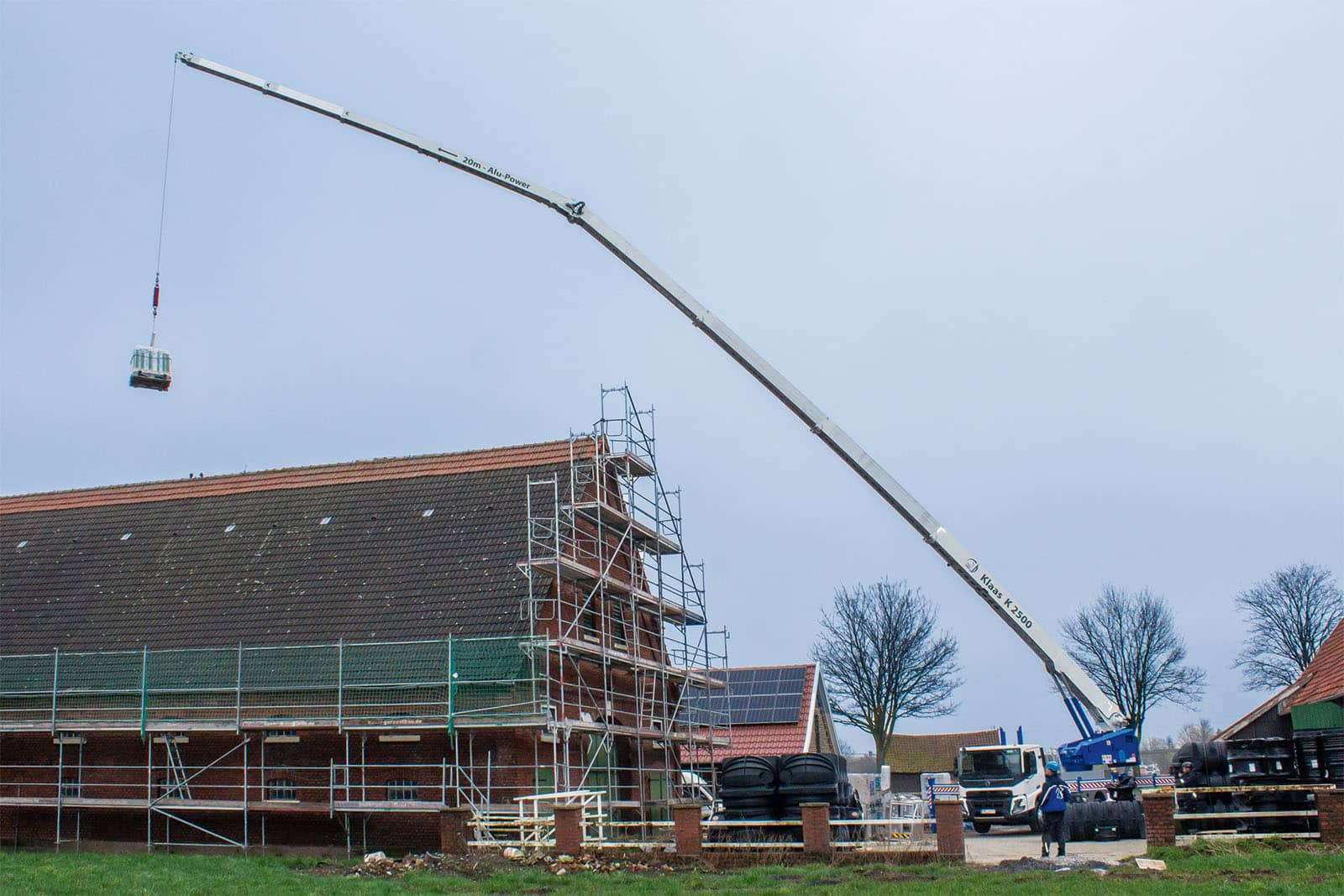

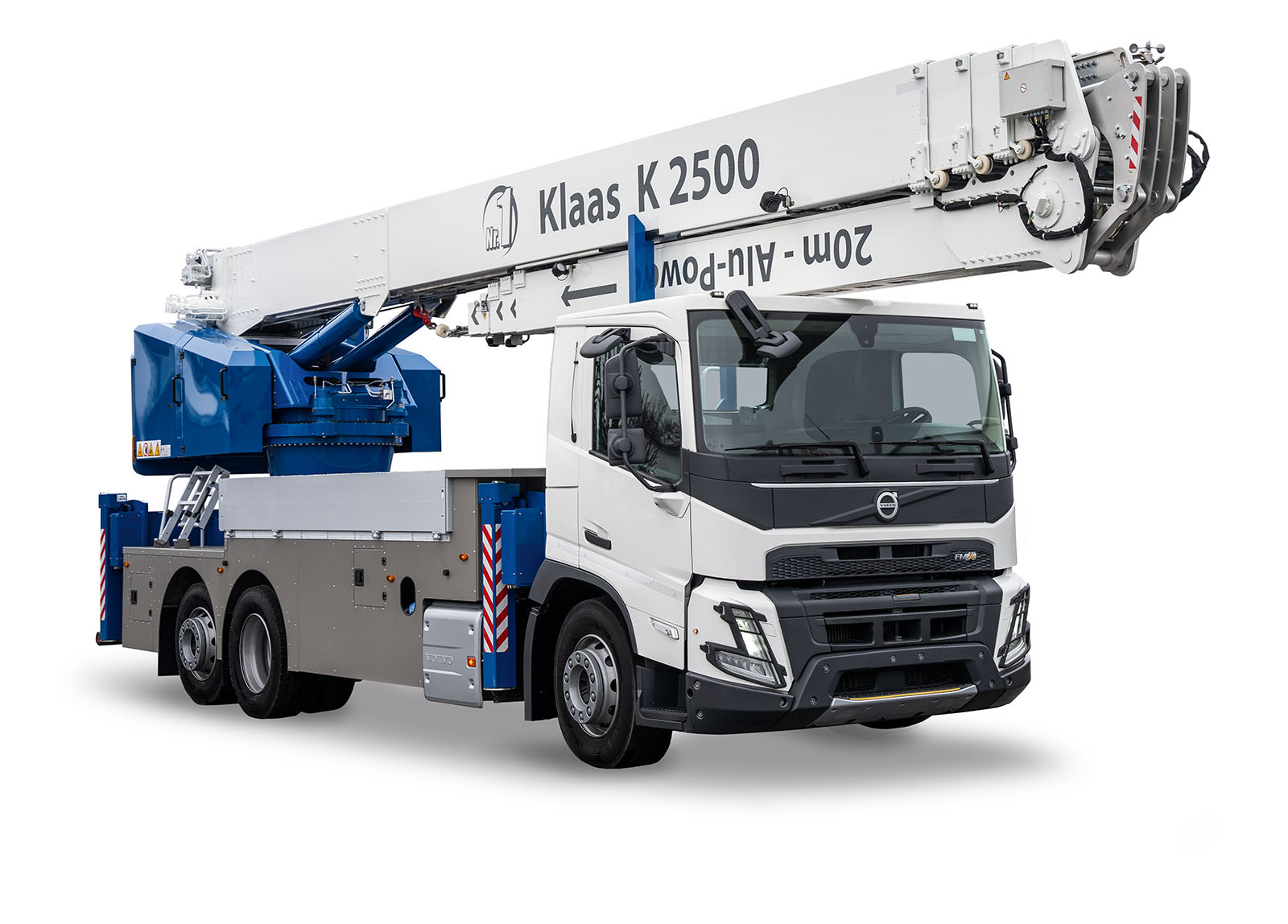

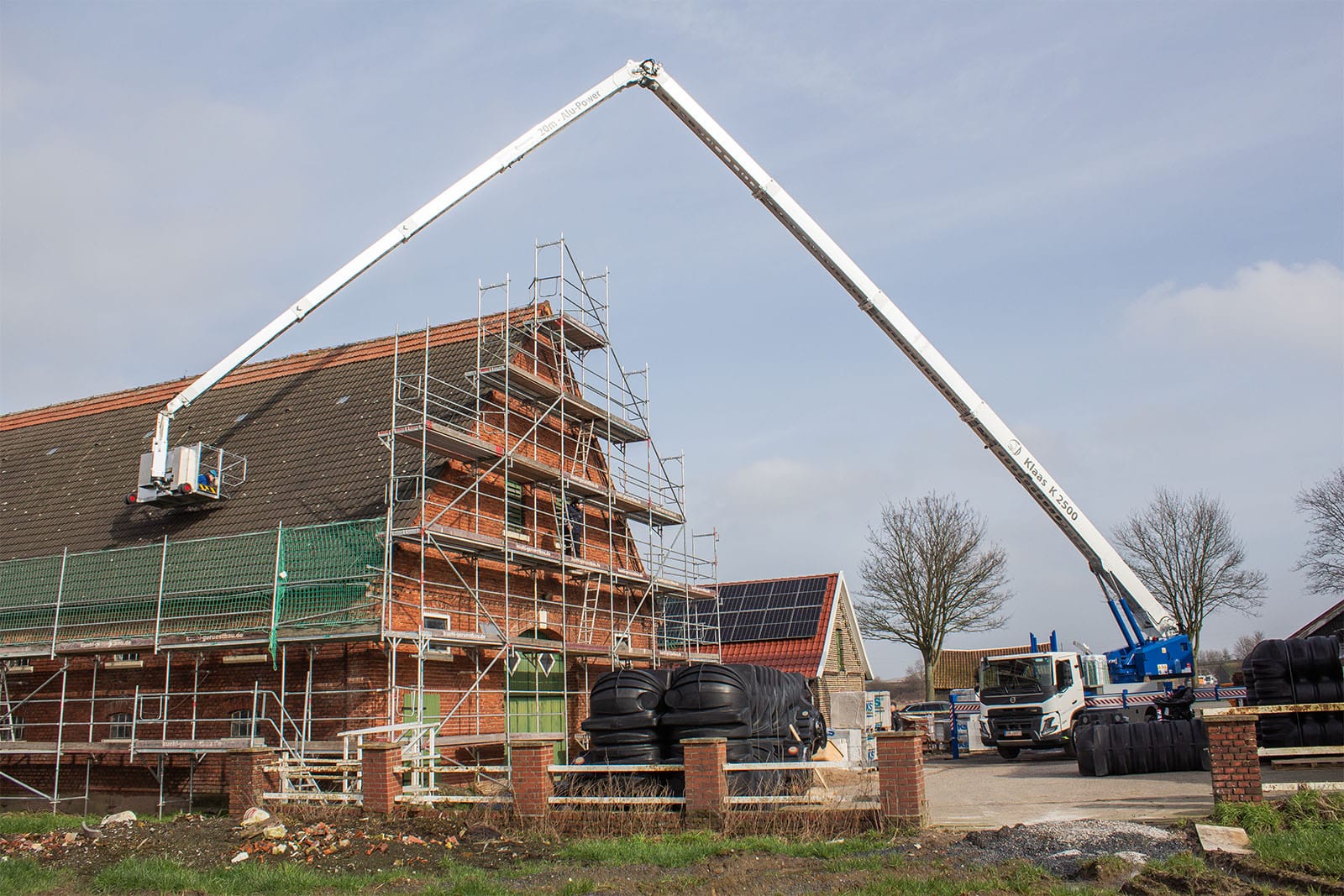

The K2500 is particularly impressive thanks to its enormous outreach values in combination with large hook heights in the load range up to three tonnes. Thanks to an innovative mast system with a triple hydraulically telescopic folding jib and a small footprint of max. 7.34 m width, it is the ideal crane for city centres with limited space. The K2500 is also ideal for covering huge roof areas thanks to its lateral reach of 45 m with a load of 500 kg. Thanks to a particularly strong joint between the main and auxiliary jibs, materials weighing up to one tonne can be lifted and telescoped effortlessly, even when the fly jib is in the 90-degree position.
The readers of the trade magazines ‘dachbaumagazin’ and ‘mikado‘ voted the K2500 Product of the Year 2025 in the category ‘Construction Site, Workshop and Occupational Safety’!
- Condition
- Novo
- Hook load (stand./opt.)
- 4.5 / – t
- Hook height
- 58.5 m
- Total weight
- ≥ 26 t
- Boom length
- 59.76 m
- Outrigger width (min.)
- 3.04 m
- Outrigger width (max.)
- 7.34 m
- Winch capacity
- 4,500 kg

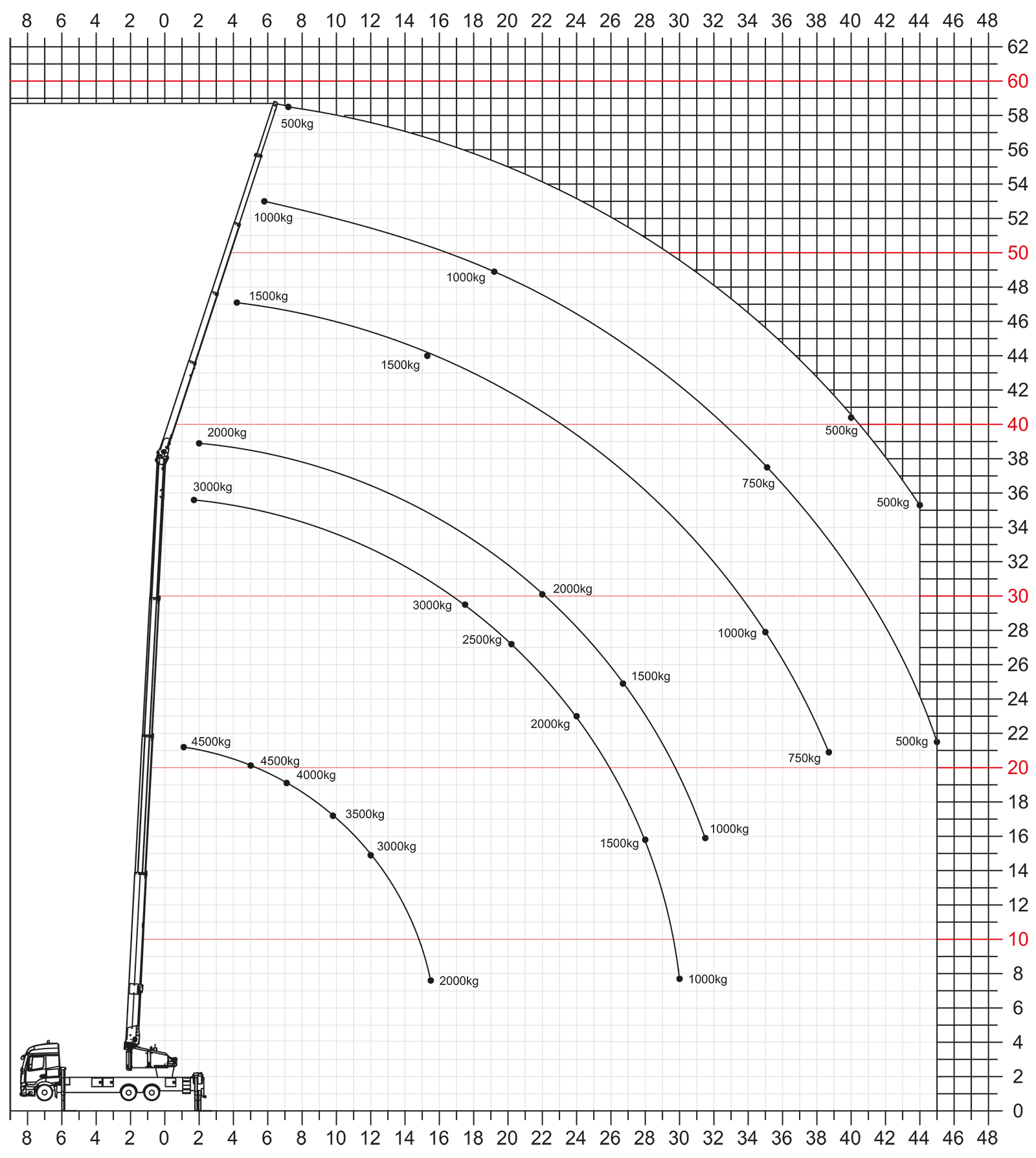

- Boom (3,000 kg - 1,000 kg)
- 6.65 - 17.50 m
- Boom (750 - 500 kg)
- 17.50 - 18.80 m
- Extension 4 (500 kg)
- 21.65 m
