K2350

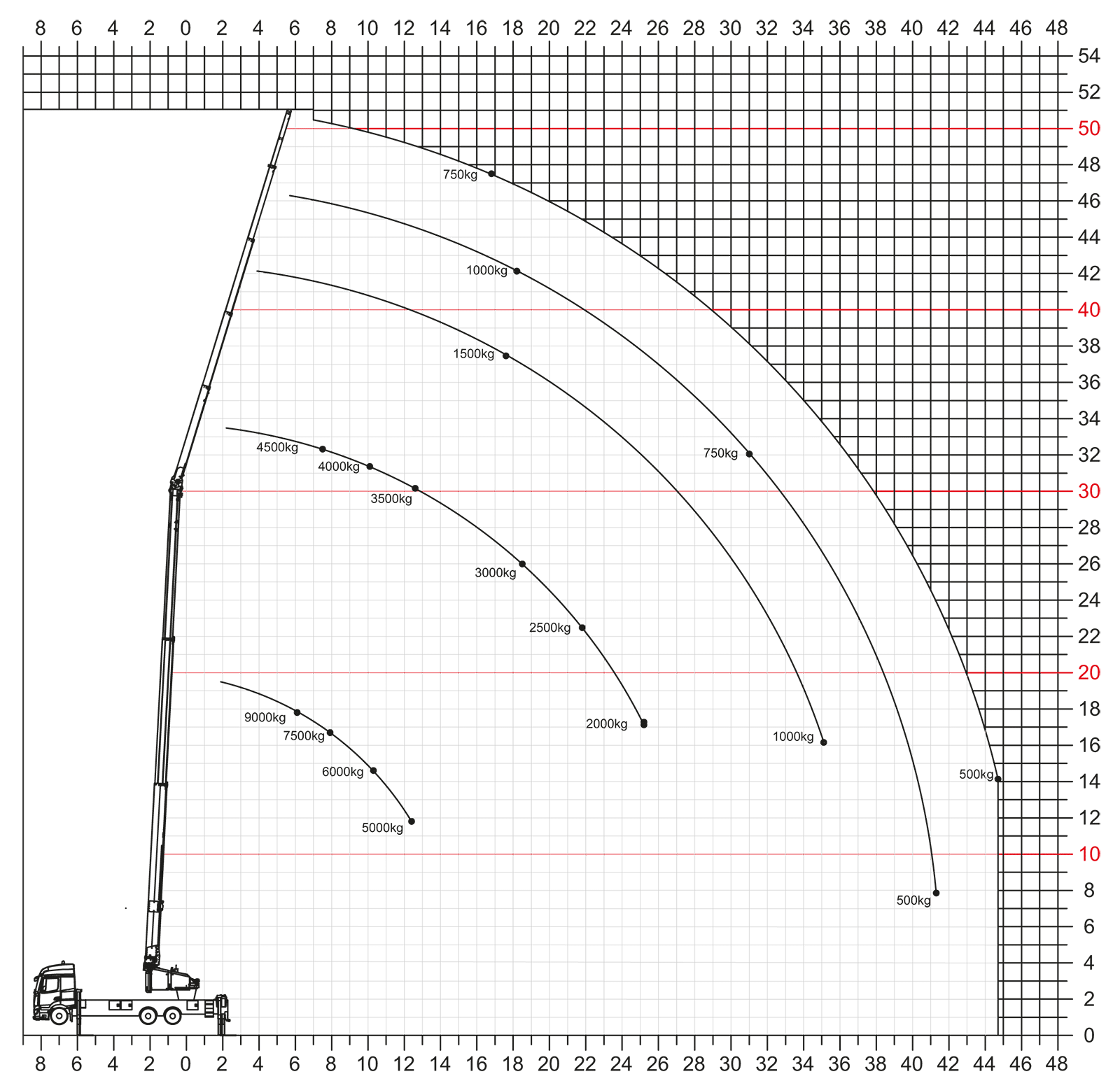

The K2350 is a powerhouse with a hook height of 50 m and a powerful hoist. In single-rope operation, it lifts loads of up to 4,500 kg. Thanks to solid aluminium rails and a robust folding jib, it can transport materials weighing up to 2,000 kg at a reach of up to 25 m. Even with a hook load of 3,000 kg, the K2350 still achieves a lateral reach of 19 m. The triple-stage hydraulically telescopic folding jib ensures a high level of operating comfort.

The K2350 is optionally available with a newly developed two-rope operation. This enables the crane to lift loads of up to 9 t to a height of 18 m. Particularly practical: switching between single- and two-rope operation is automatic, tool-free and convenient at the touch of a button on the remote control. As the second crane hook is already integrated into the mast, there is no need for additional installation work.

Solid outrigger cylinders, double-telescoping outrigger beams and an outrigger width of just 7.34 m make the K2350 the ideal partner for operations in narrow city centres and on confined construction sites.
