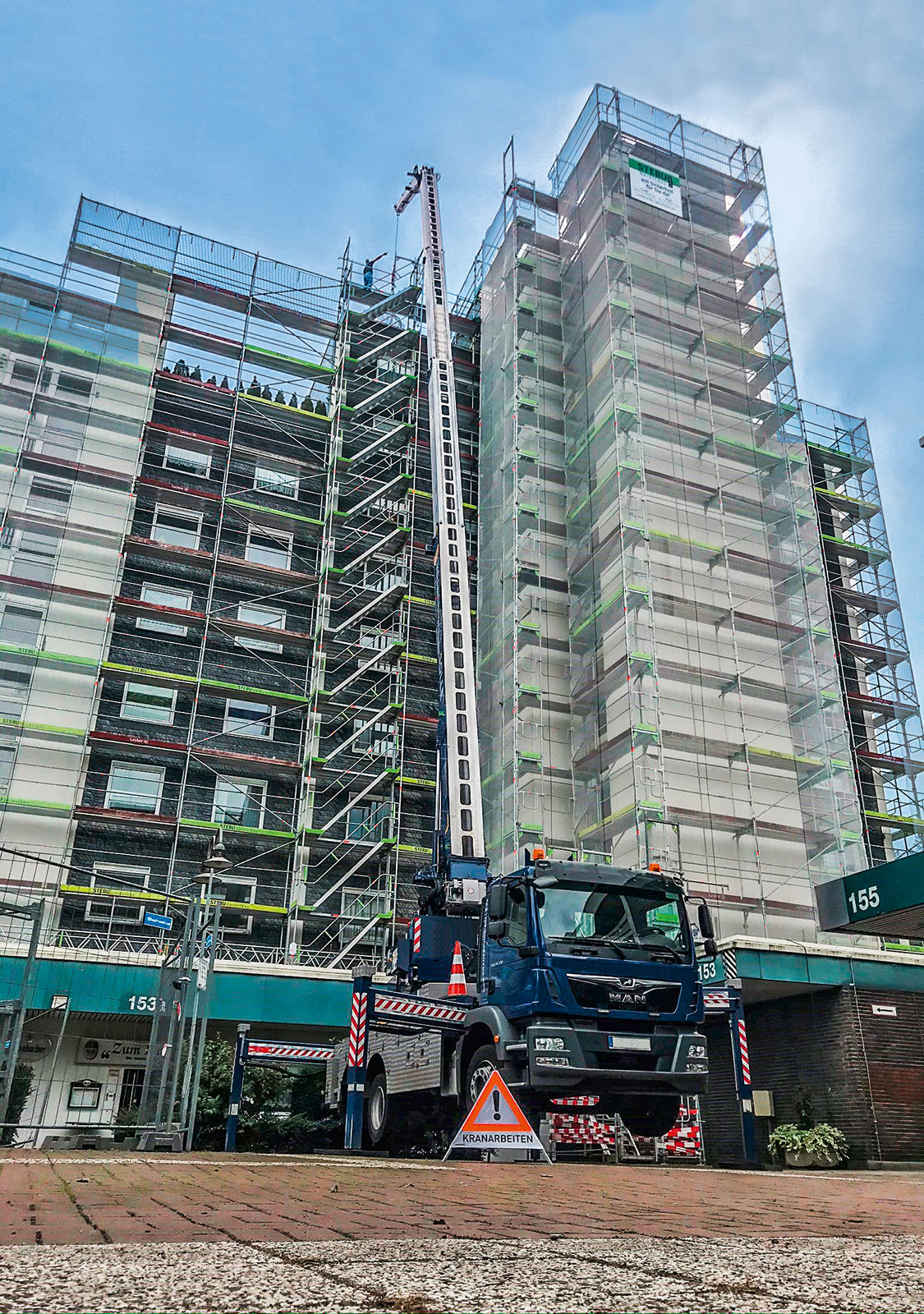

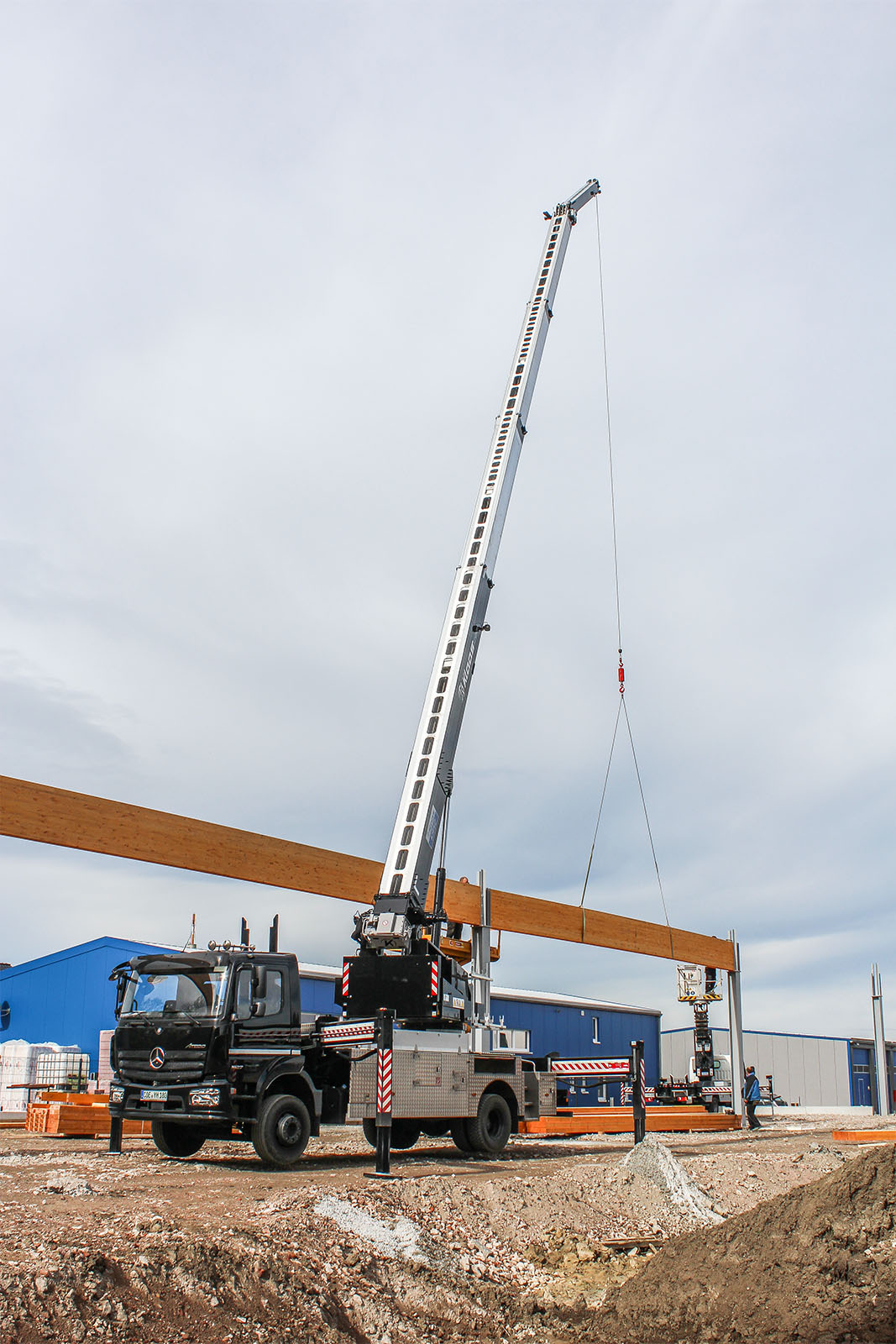

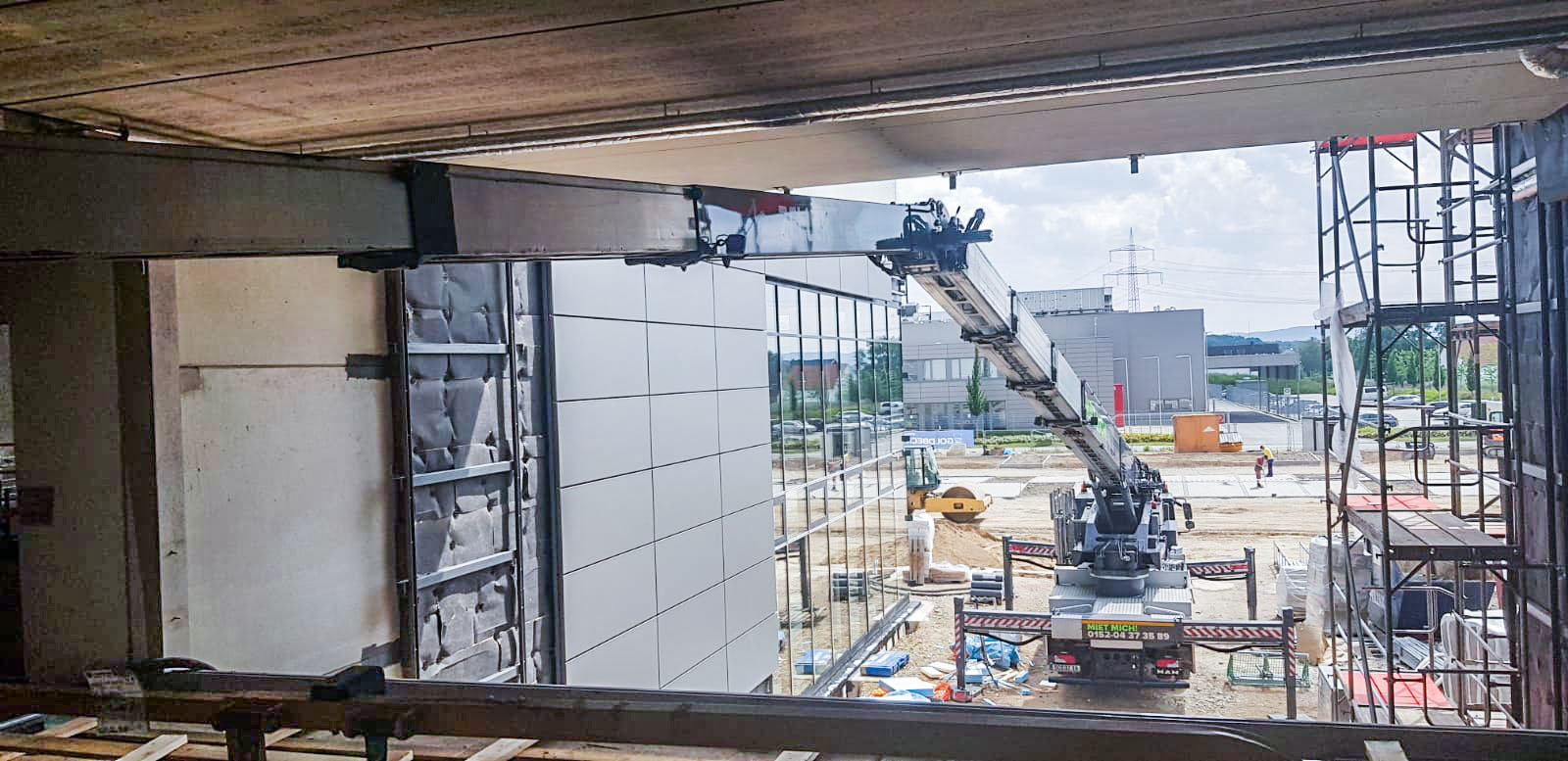

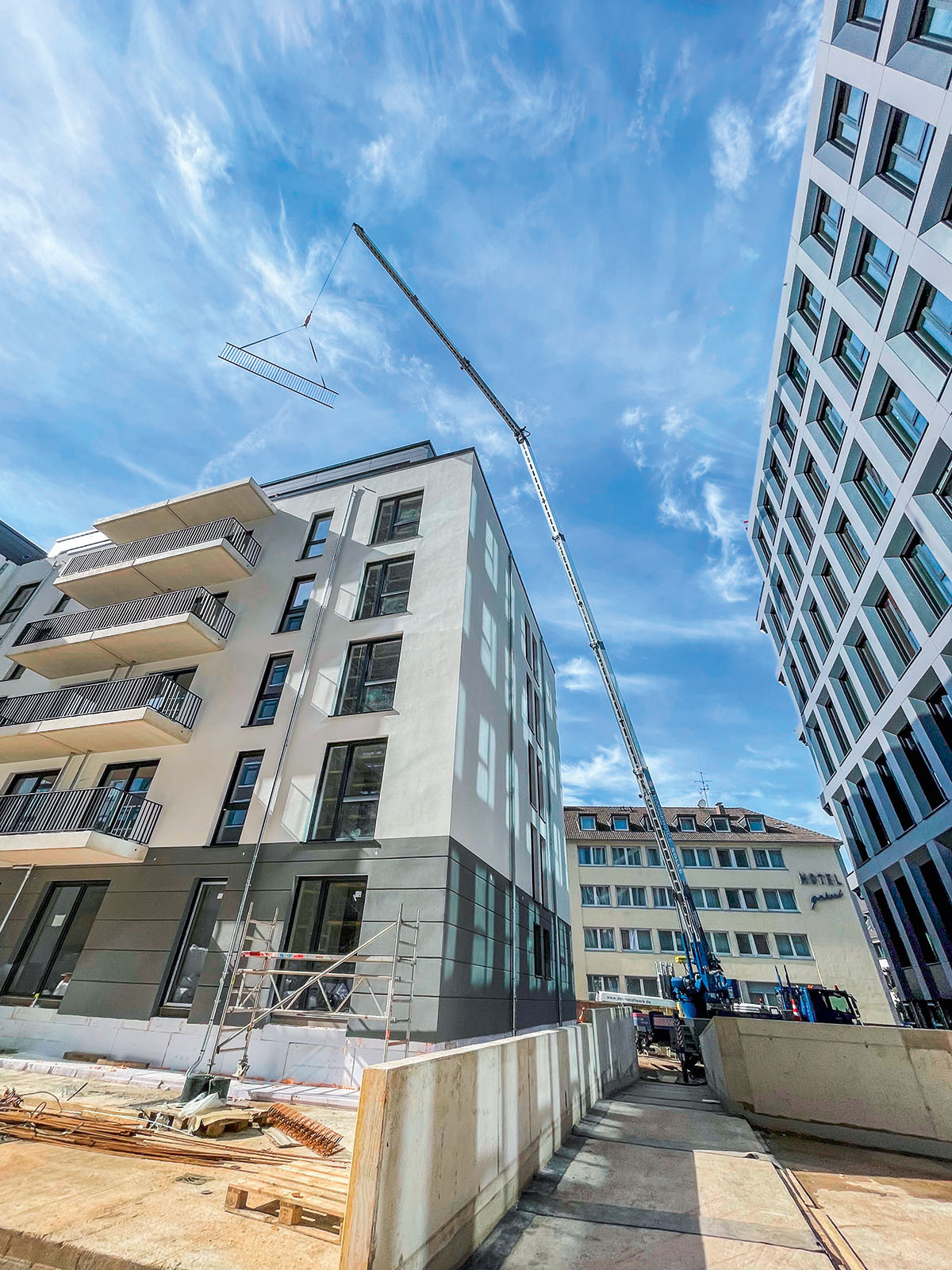

The K950 with a hook height of more than 44 m is a veritable power pack: 1,000 kg can easily be lifted 28 m wide. The aluminium crane shows off its benefits particularly on tight building sites: due to a low wheelbase the three-axle model retains its manoeuvrability, whilst the double hydraulic, telescopic fly jib can be extended by radio remote control even where there is little room. The K950 E is equipped with a powerful electric motor as standard and has a large battery system. The K950 D is a particularly economical version powered by the truck engine in conjunction with a PTO auxiliary drive.
Technical specifications
- Condition
- Novo
- Hook load (stand./opt.)
- 3.0 /5.0 t
- Hook height
- 44.1 m
- Total weight
- ≥ 20 t
- Boom length
- 45.30 m
- Outrigger width (min.)
- 3.04 m
- Outrigger width (max.)
- 5.49 m
- Winch capacity
- 3,000 kg
- Boom (3,000 kg - 1,500 kg)
- 5,50 - 12,15 m
- Extension 3 (350 kg)
- 13.89 m

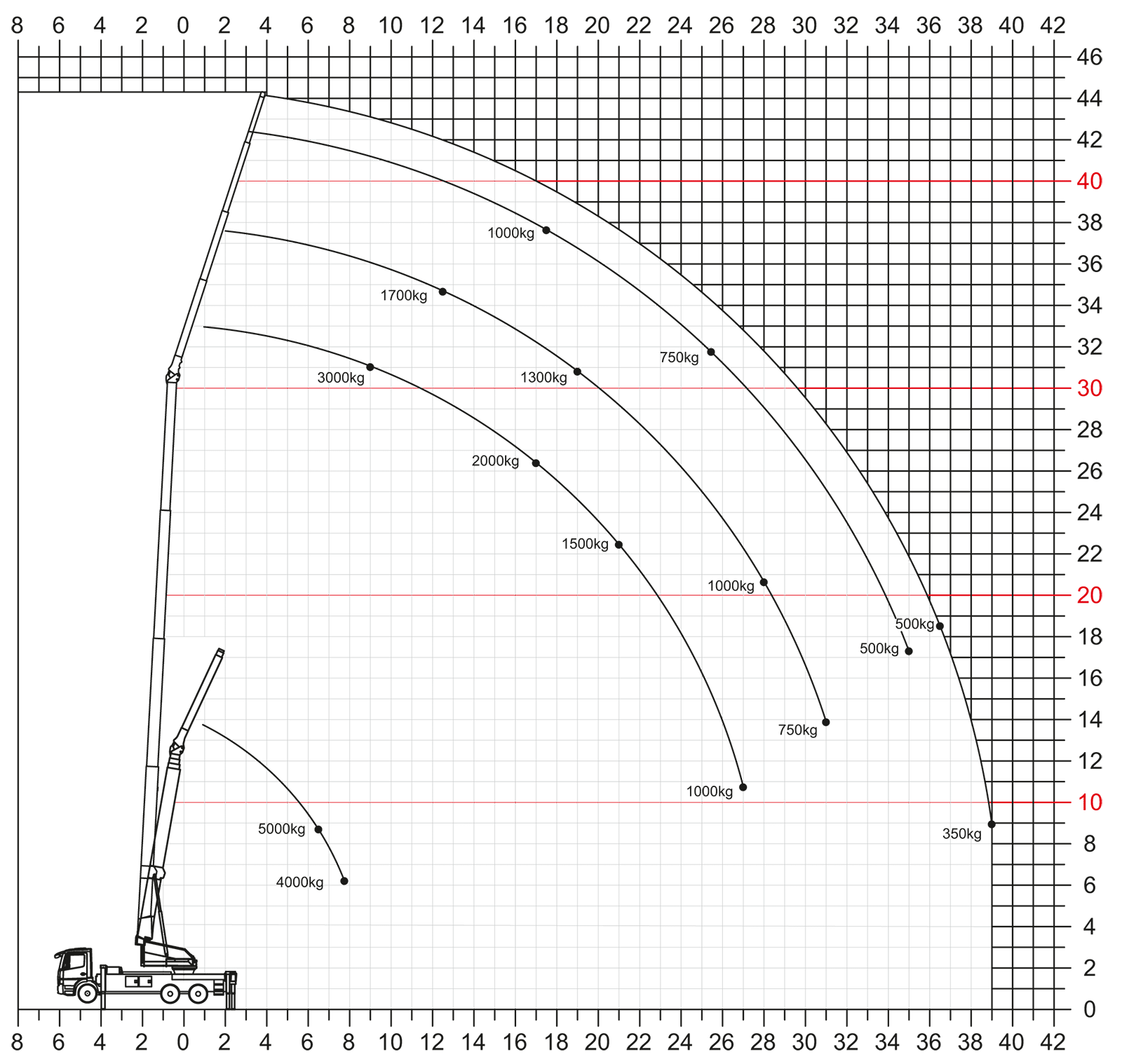

Load chart
Load

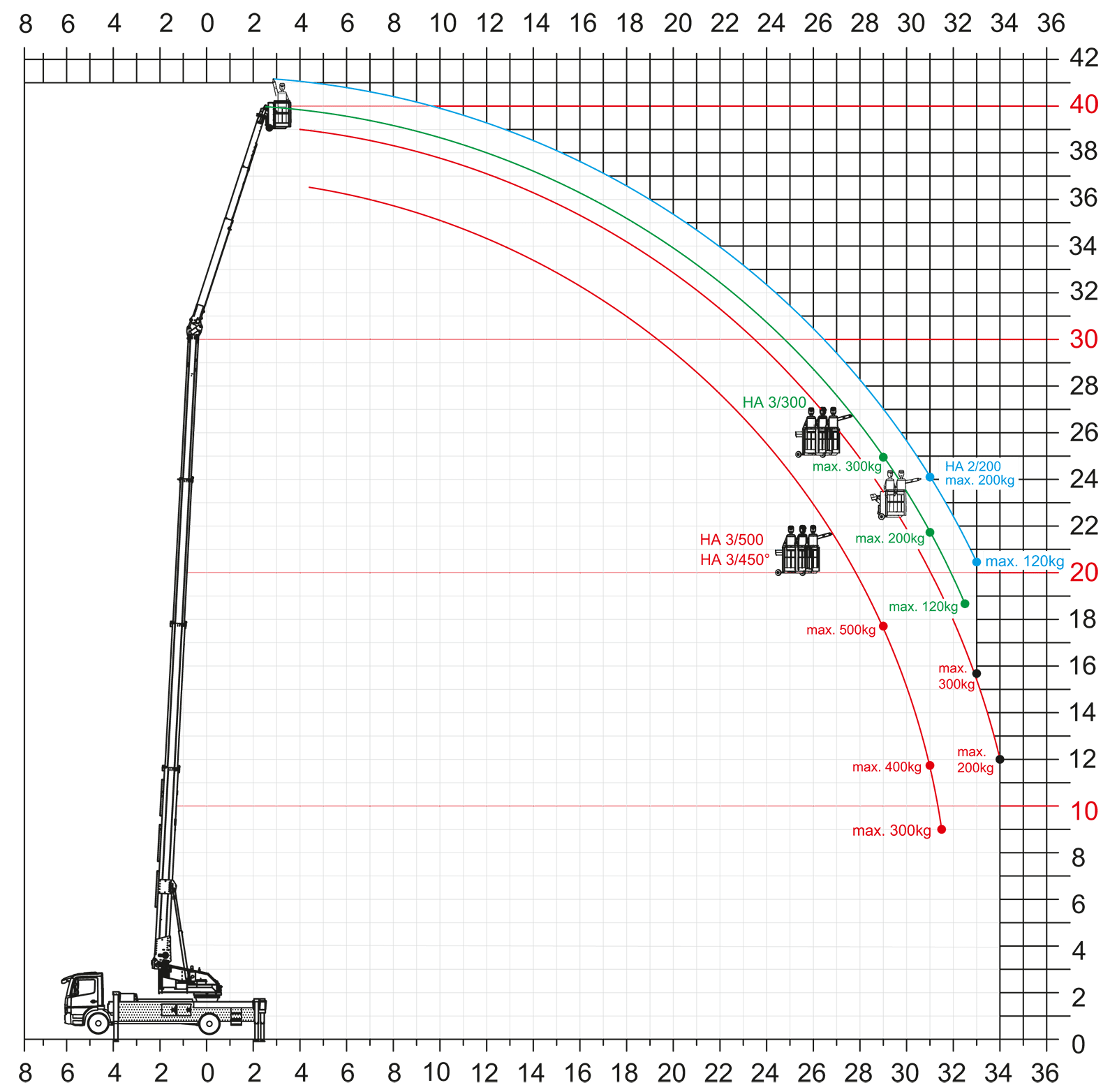

Platform
