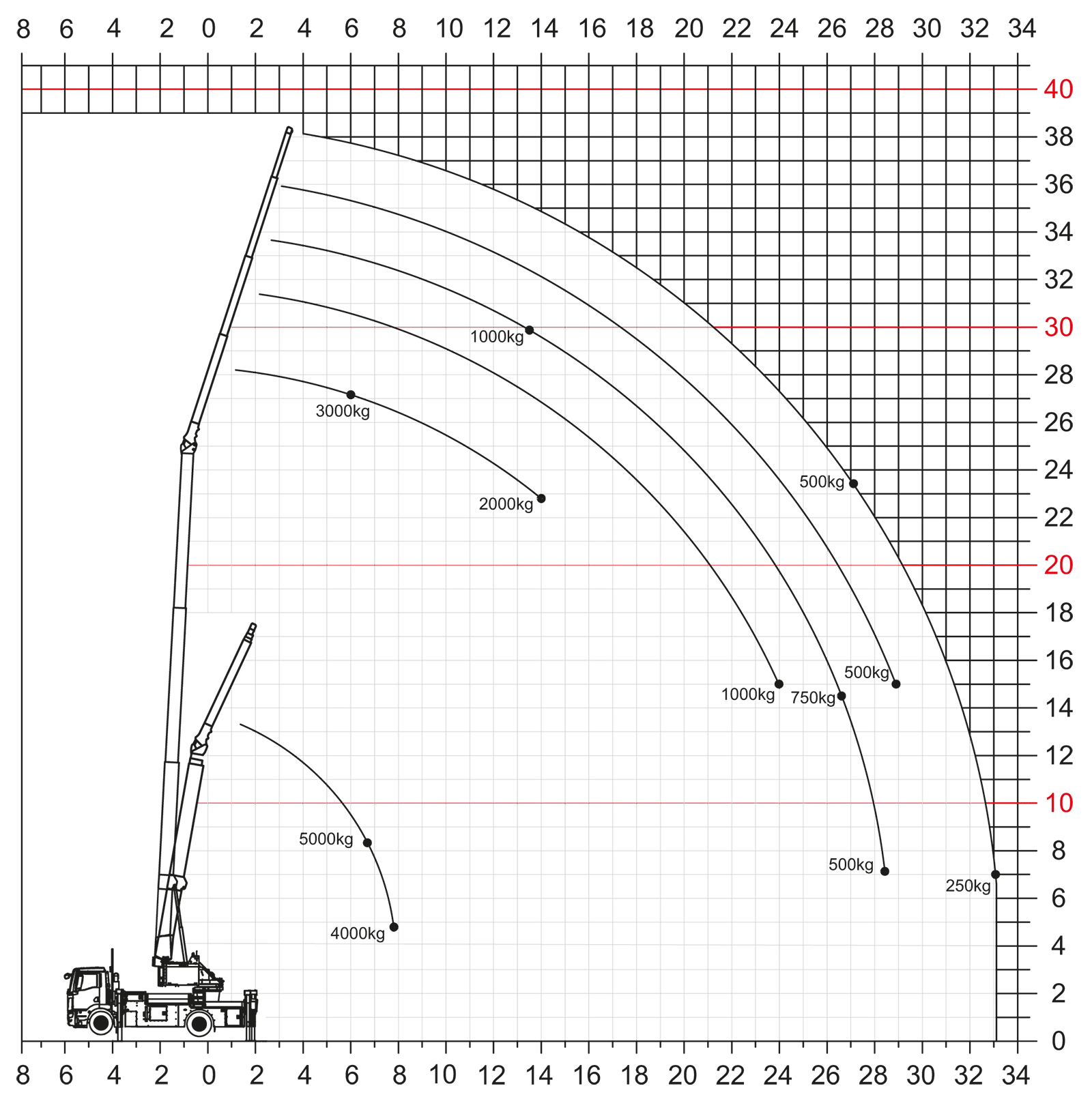

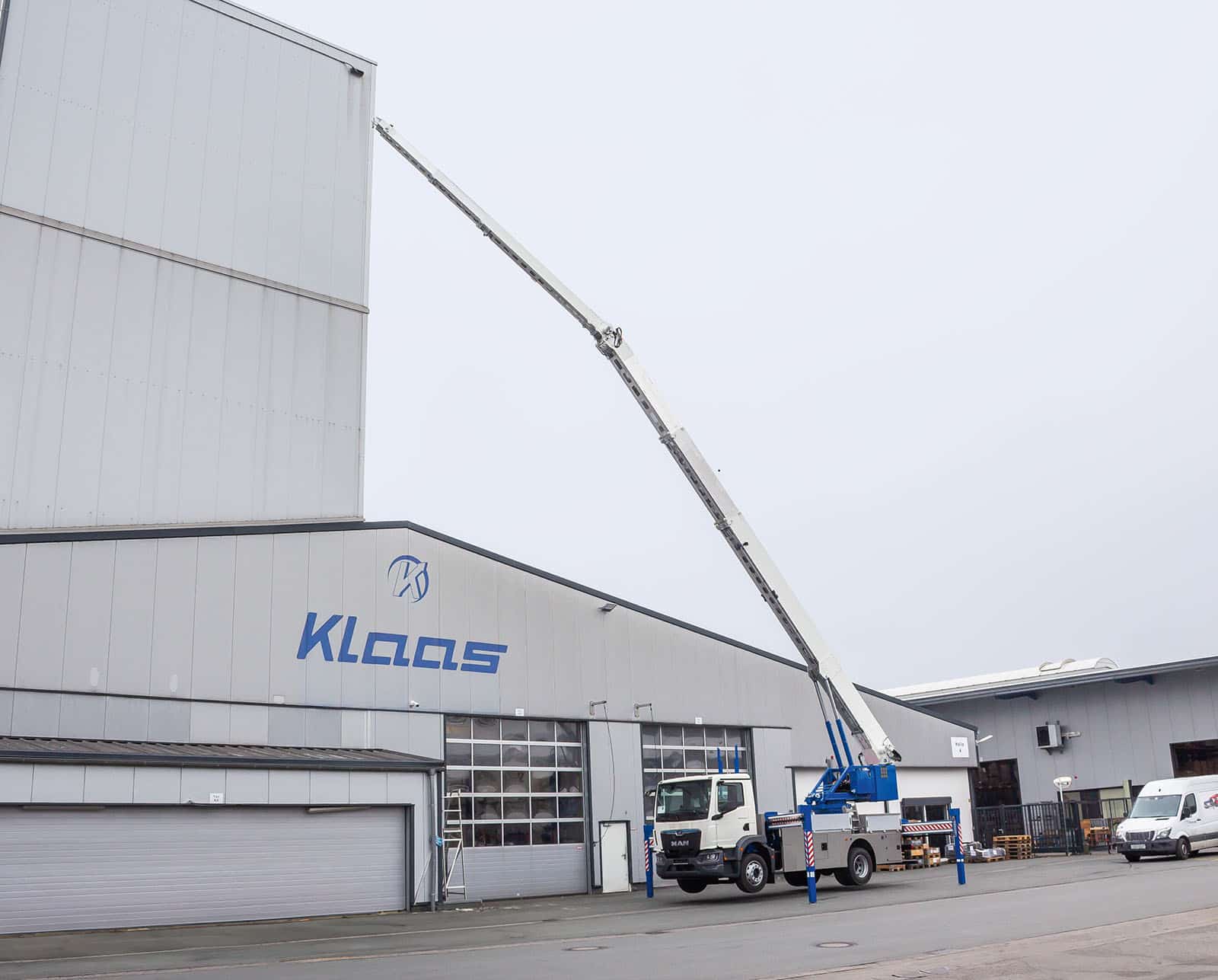

The K910 impresses with its hook height of over 38 m as well as its enormous strength. Its maximum load capacity is 5,000 kg, the lateral outreach with a load of 1,000 kg is 24 m. Equipped with a 2-fold hydraulically telescopic fly jib and a V-shaped outrigger with a maximum width of 5.94 m, the crane can be easily set up even where space is limited. The K910 is extremely manoeuvrable on an 18-tonne truck with a short wheelbase and is the ideal machine for inner-city areas.
The K910 is also available as an electric crane: with the K910 E, a large 71 kWh storage unit ensures flexible working without a power connection. If the energy storage unit is empty, it can be recharged via a 230-volt socket or a high-voltage connection. In conjunction with a consumption-optimised crane control system, the powerful battery system guarantees long running times in crane and platform operation.
- Condition
- Novo
- Hook load (stand./opt.)
- 3.0 /5.0 t
- Hook height
- 38.1 m
- Total weight
- ≥ 18 t
- Boom length
- 39.45 m
- Outrigger width (min.)
- 3.14 m
- Outrigger width (max.)
- 5.94 m
- Winch capacity
- 3,000 kg
- Boom (3,000 - 500 kg)
- 5.50 - 12.15 m
- Extension 3 (500 kg)
- 13.89 m
