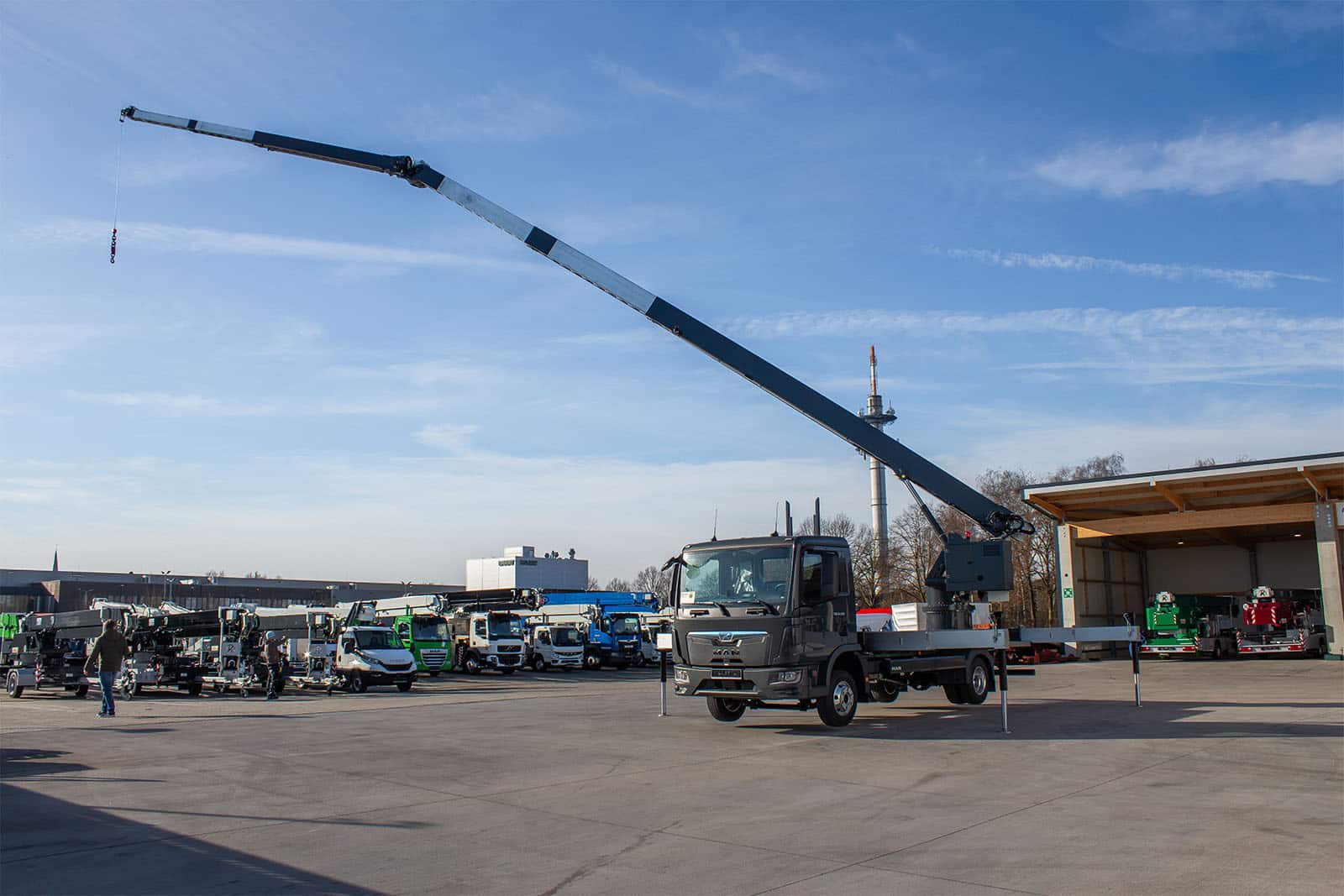

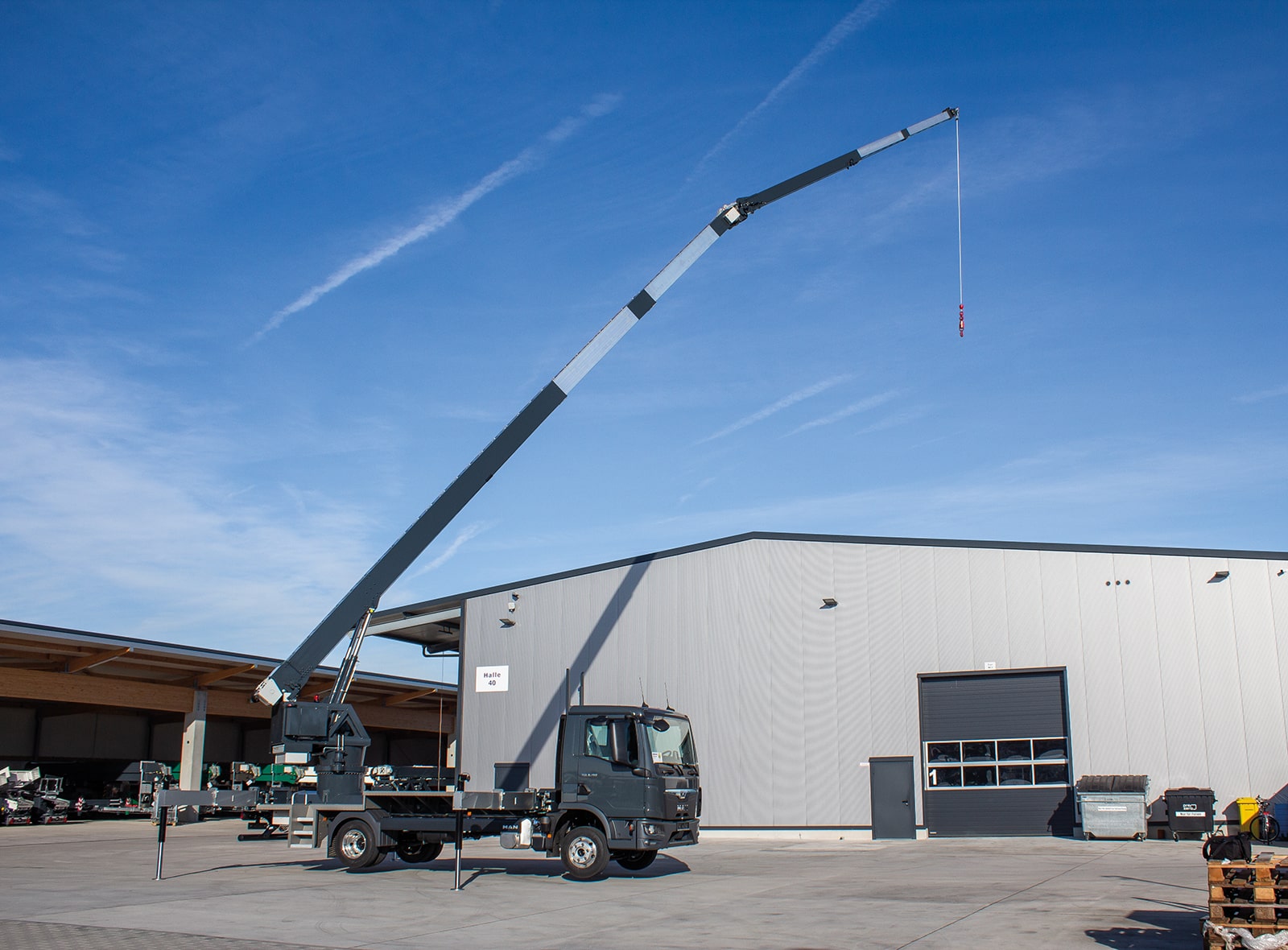

The K775 E combines innovative crane technology with maximum suitability for construction sites. With a total weight of only 7.5 tonnes, it offers an impressive lifting capacity of 2,000 kg. With a hook height of 37.5 m, it is the tallest aluminium crane in its class.

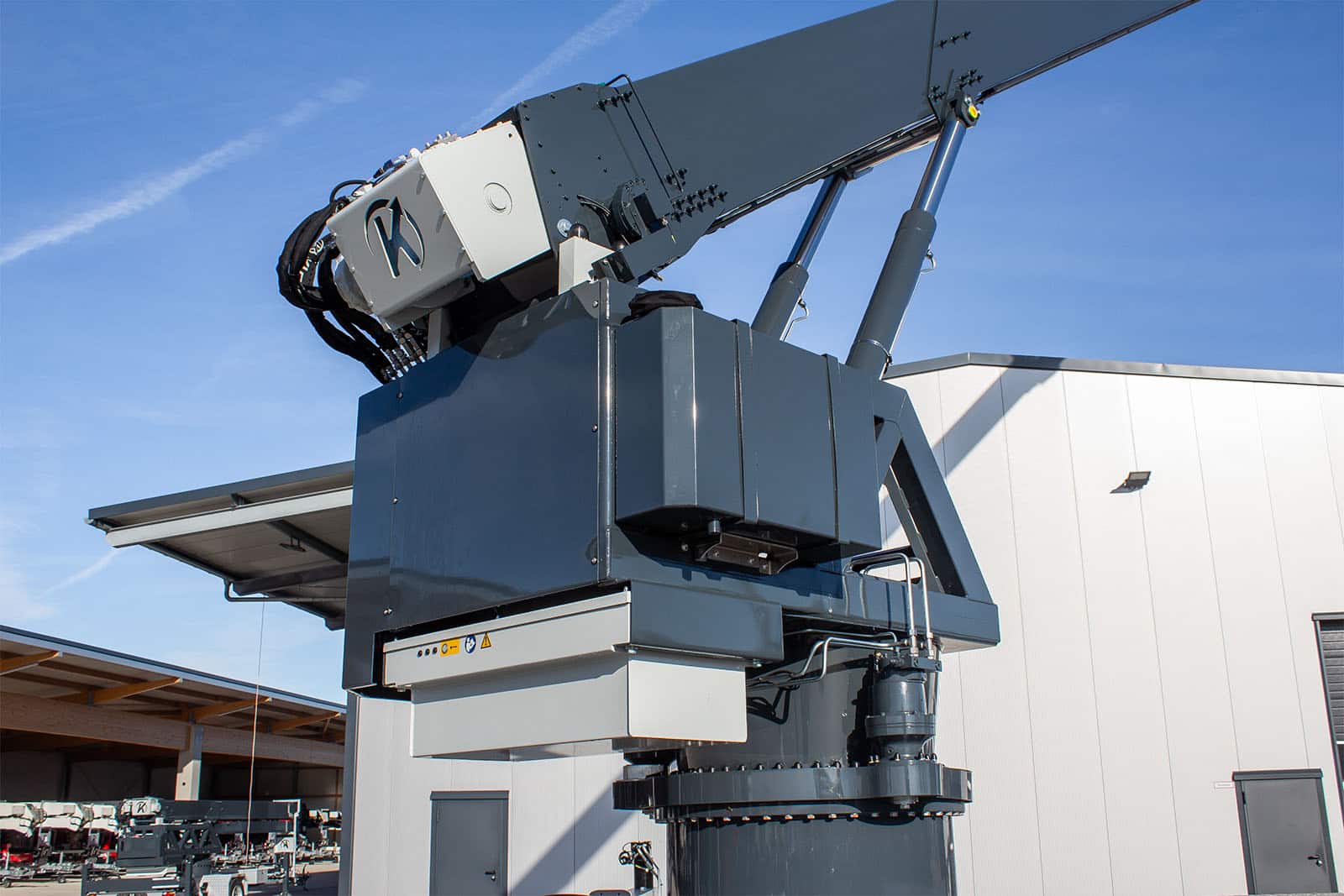

Thanks to a short upper carriage, the K775 E rotates completely within the mirror contour of the truck. This makes it particularly suitable for work in inner-city and confined construction site situations. The double hydraulically telescopic folding jib enables precise work even where space is at a premium.
The K775 E is flexible and sustainable thanks to its battery-powered electric motor. A powerful energy storage system and optimal consumption settings allow it to be used for several working days without recharging. It can also be used for many hours in platform mode with frequent rotation. The K775 E is easily charged via a 230-volt connection.
- Condition
- Novo

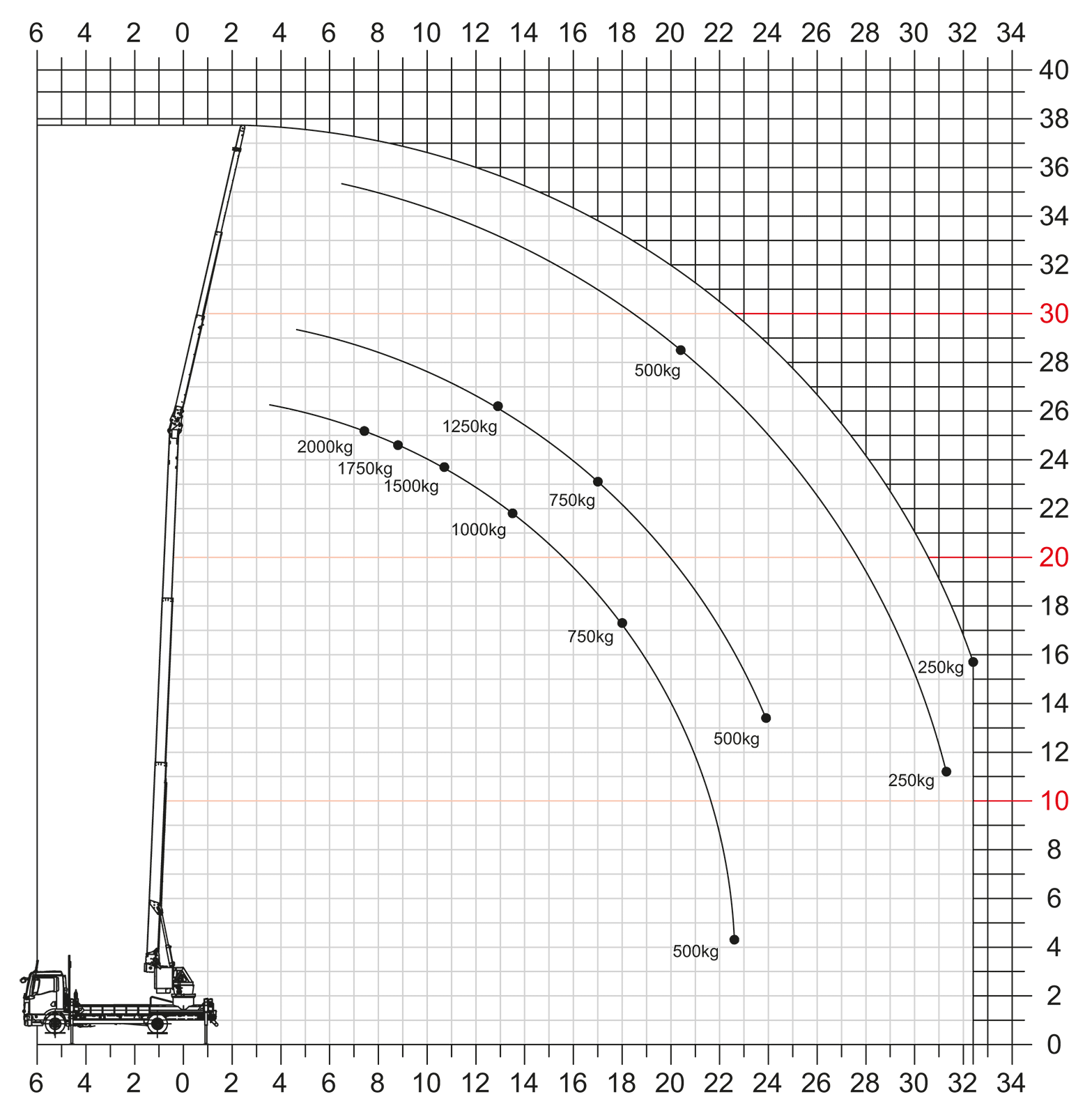

- Hook load (stand./opt.)
- 2.0 / – t
- Hook height
- 37.5 m
- Total weight
- ≥ 7.5 t
- Boom length
- 39.00 m

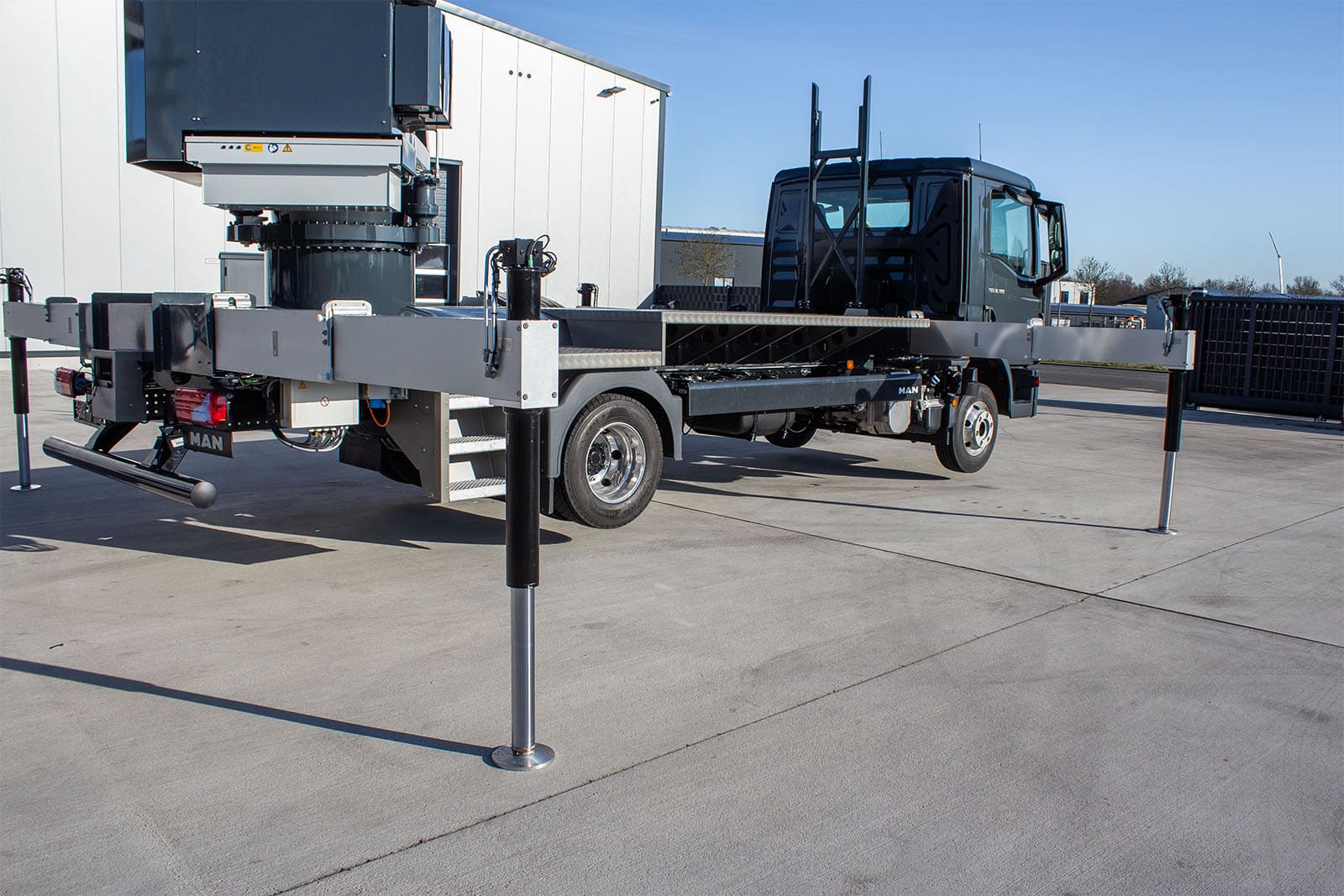

- Outrigger width (min.)
- 2.71 m
- Outrigger width (max.)
- 6.23 m
- Winch capacity
- 2,000 kg
- Boom (2,000 kg)
- 5.11 m
- Extension 1 + 2 (hydraulic)
- 5.11 - 11.91 m
- Extension 3 (250 kg)
- 14.07 m
- Extension 2 (250 kg)
- 12.88 m
