Whether it is used for firefighting or on builder’s yards, this Klaas multifunctional appliance is impressive all round. The ways that the AluFiver can be used are as varied as the cases dealt with every day by the fire brigade and technical support services. It is designed so that firefighters can work quickly and efficiently with the appliance even under extreme conditions. The automatic set-up and dismounting system enables a simple and safe procedure especially in precarious situations. Its compact dimensions make even places that are difficult to reach accessible.
Technical specifications
- Condition
- Novo
- Working height
- 32.0 m
- Total weight
- ≥ 14 t
- Rescue height
- 30.00 m
- Outrigger width (min.)
- 2.37 m
- Outrigger width (max.)
- 5.24 m
- Max. water capacity
- 2,000 l/min.
- Throwing distance
- 50.00 m
- Hook height
- 18.00 m
- Range (2,000 kg)
- 6.00 m
- Range (1,000 kg)
- 9.00 m
- Range (500 kg)
- 16.00 m
- DIN generator
- 5.00 kVA
- Vehicle dimensions
- 9.50 m

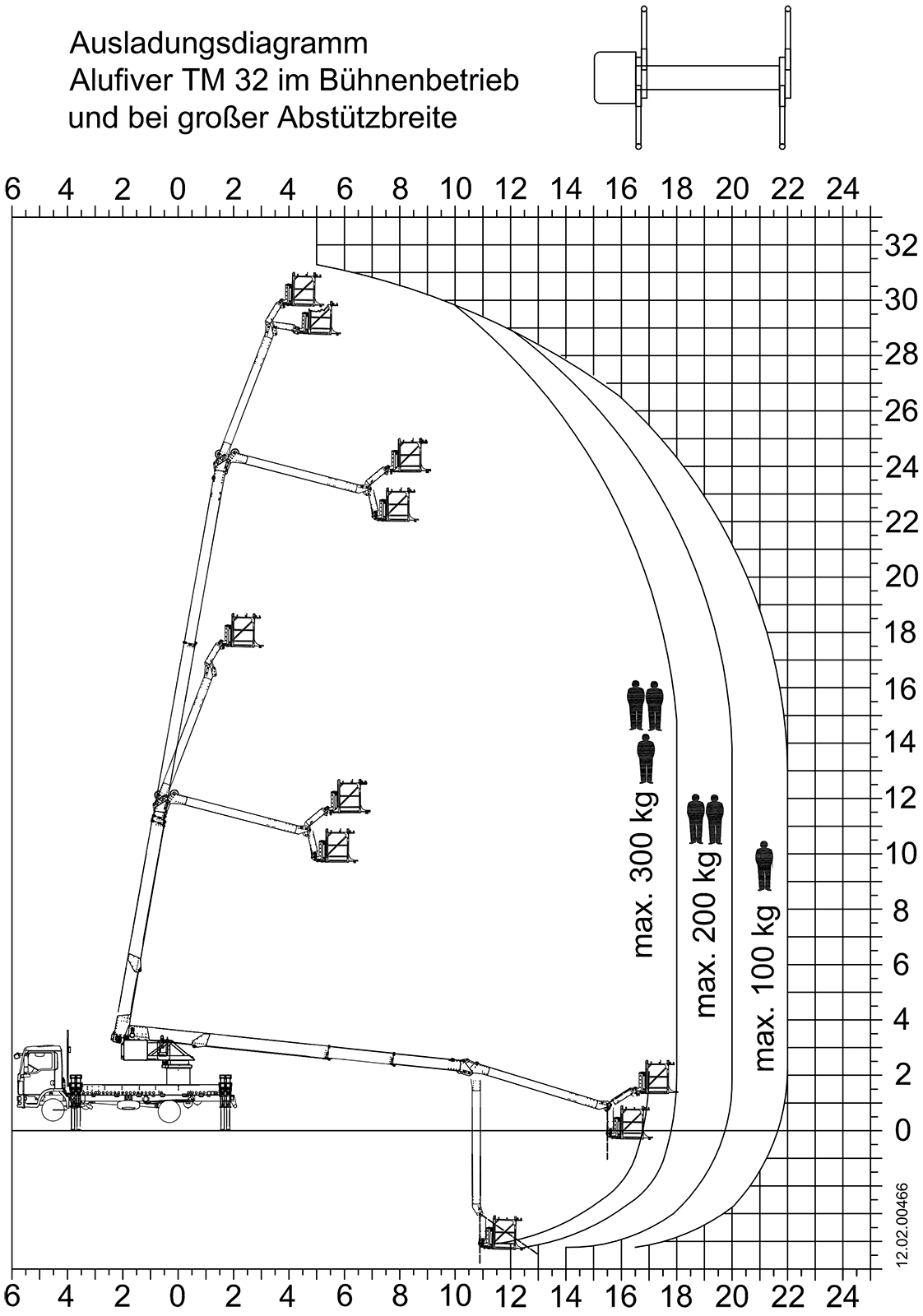

Load chart
Load
