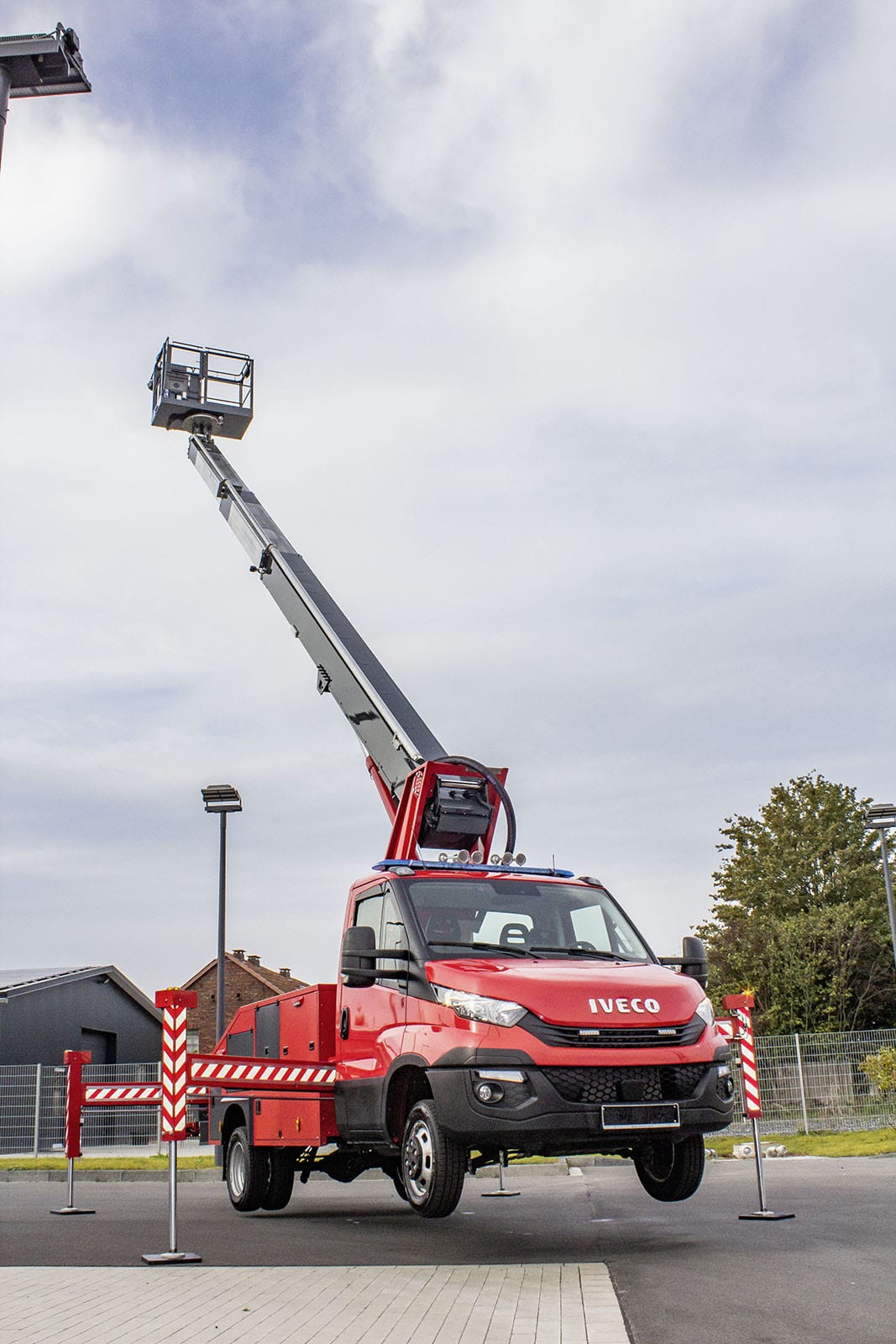

The Theo20 FW is an elevating work platform for fast and safe fire fighting operations in confined spaces. Via a telescopic water guide tube on the aluminium mast, fires with a water capacity of 400 litres per minute and a throwing distance of approximately 30 metres can be fought efficiently.
Thanks to its compact dimensions, the Theo20 FW is easy to handle and can also be set up in places where access is difficult or impossible for proven fire-fighting vehicles. Its vehicle offers space for three firefighters, and clearly arranged equipment such as radio, navigation and control panel for special signals make it easy to operate.
Technical specifications
- Condition
- Novo
- Working height
- 20.0 m
- Range to the rear (250 kg)
- 14.5 m
- Range to the rear (100 kg)
- 14.5 m
- Range to the side (100 kg)
- 14.5 m
- Basket capacity
- 250 kg
- Total weight
- 4.6 t
- Swivel range
- unlimited slewing
- Work basket angle of rotation
- 90.00 °
- Large work basket
- 1.40 x 0.70 m
- Outrigger width (min.)
- 2.24 m
- Outrigger width (max., at the front)
- 4.26 m
- Outrigger width (max., at the back)
- 4.25 m

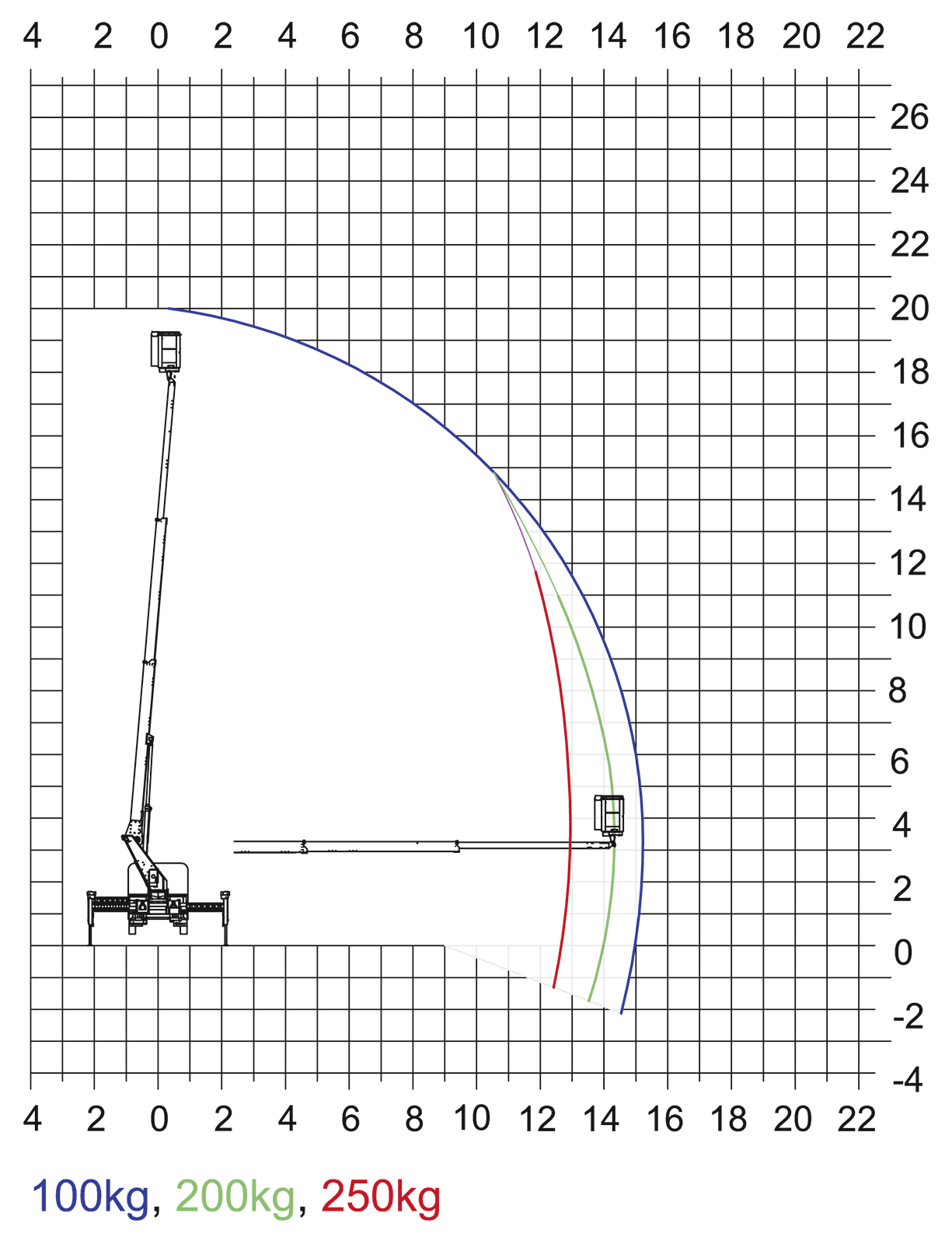

Load chart

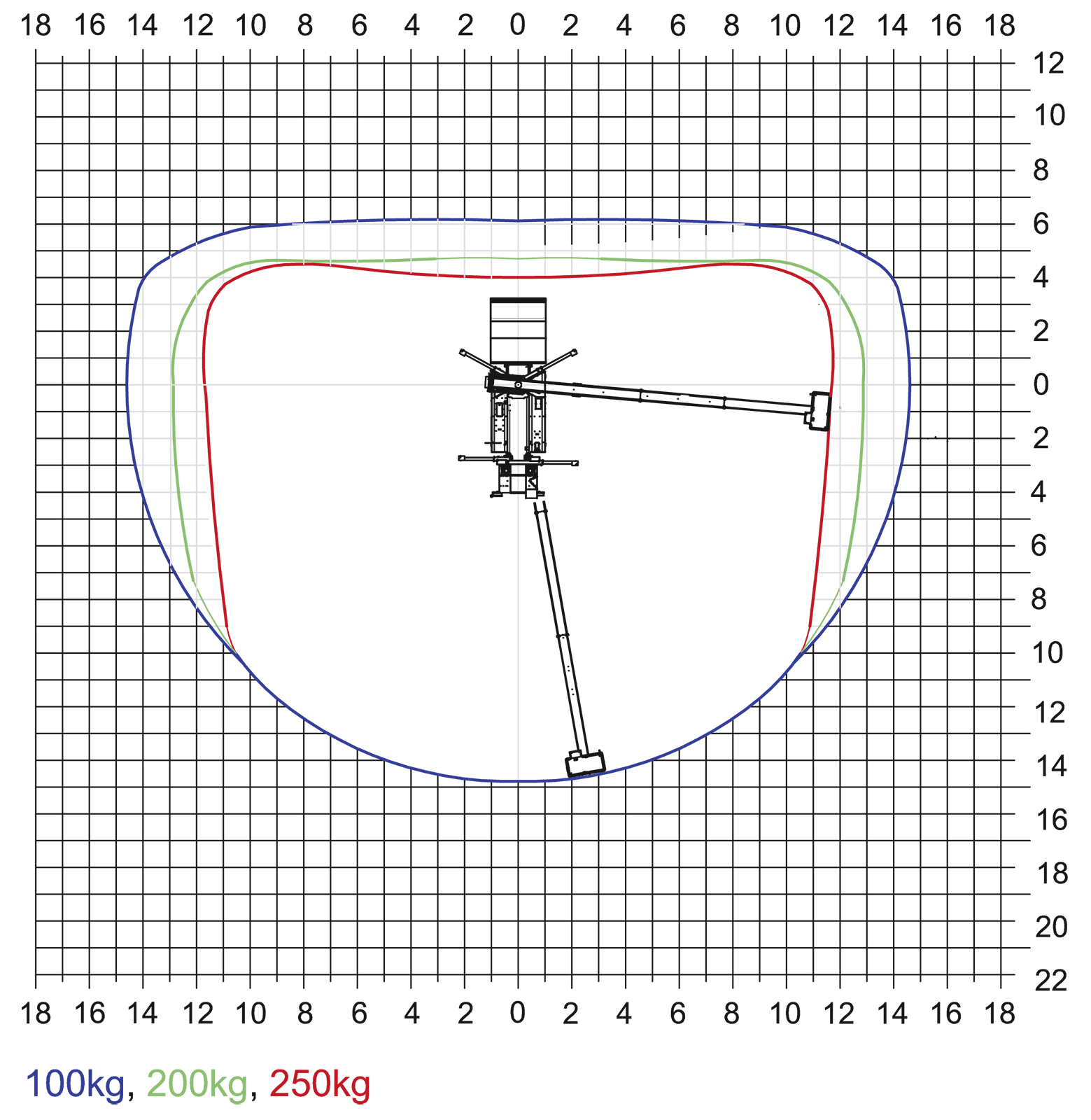

Load

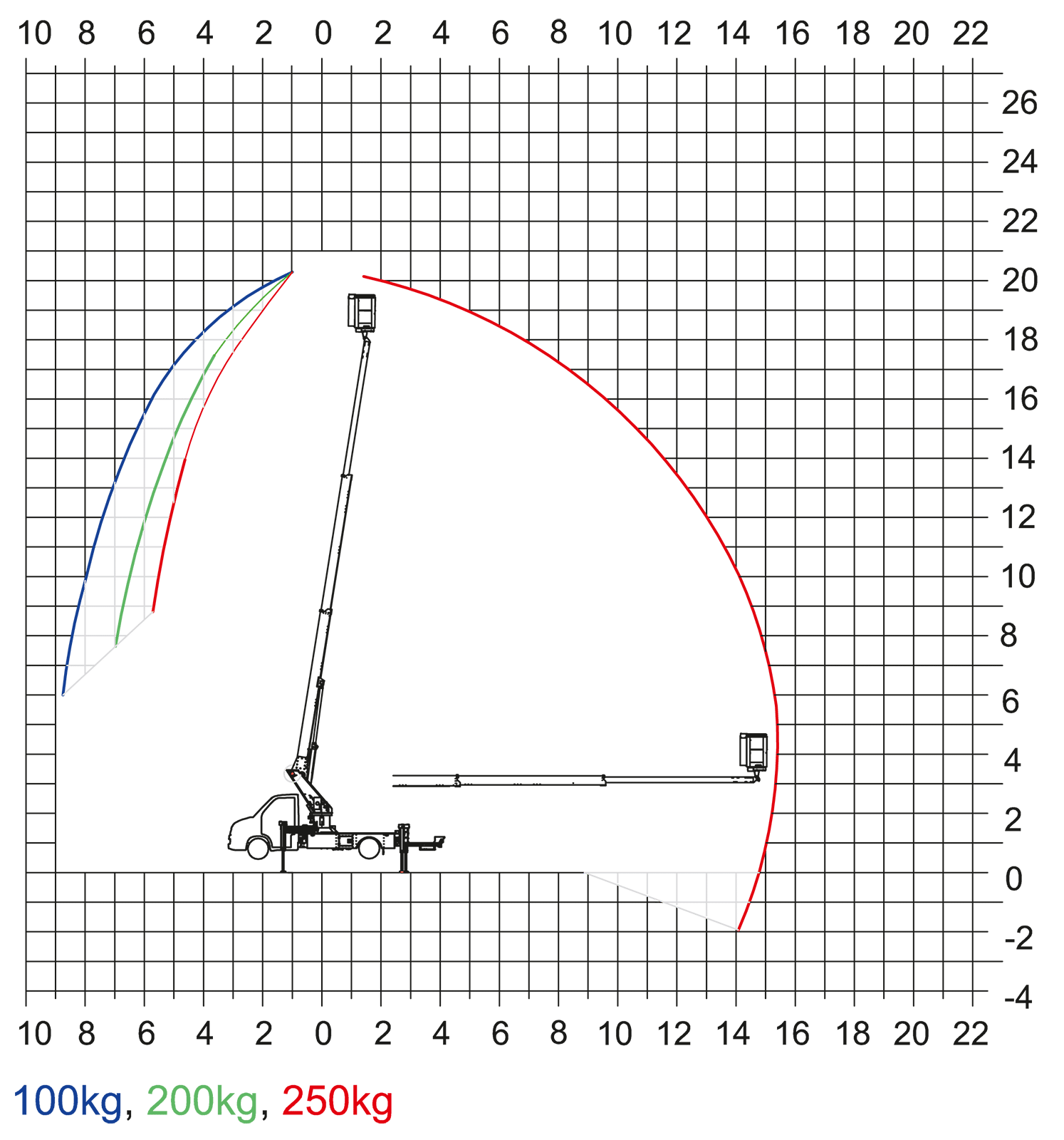

Platform
