The Lutz is a powerful 7.5-tonne elevating work platform with a maximum working height of 32.5 m and an exceptional lateral reach of 22 m with a basket load of 300 kg. It sets new standards in its class.

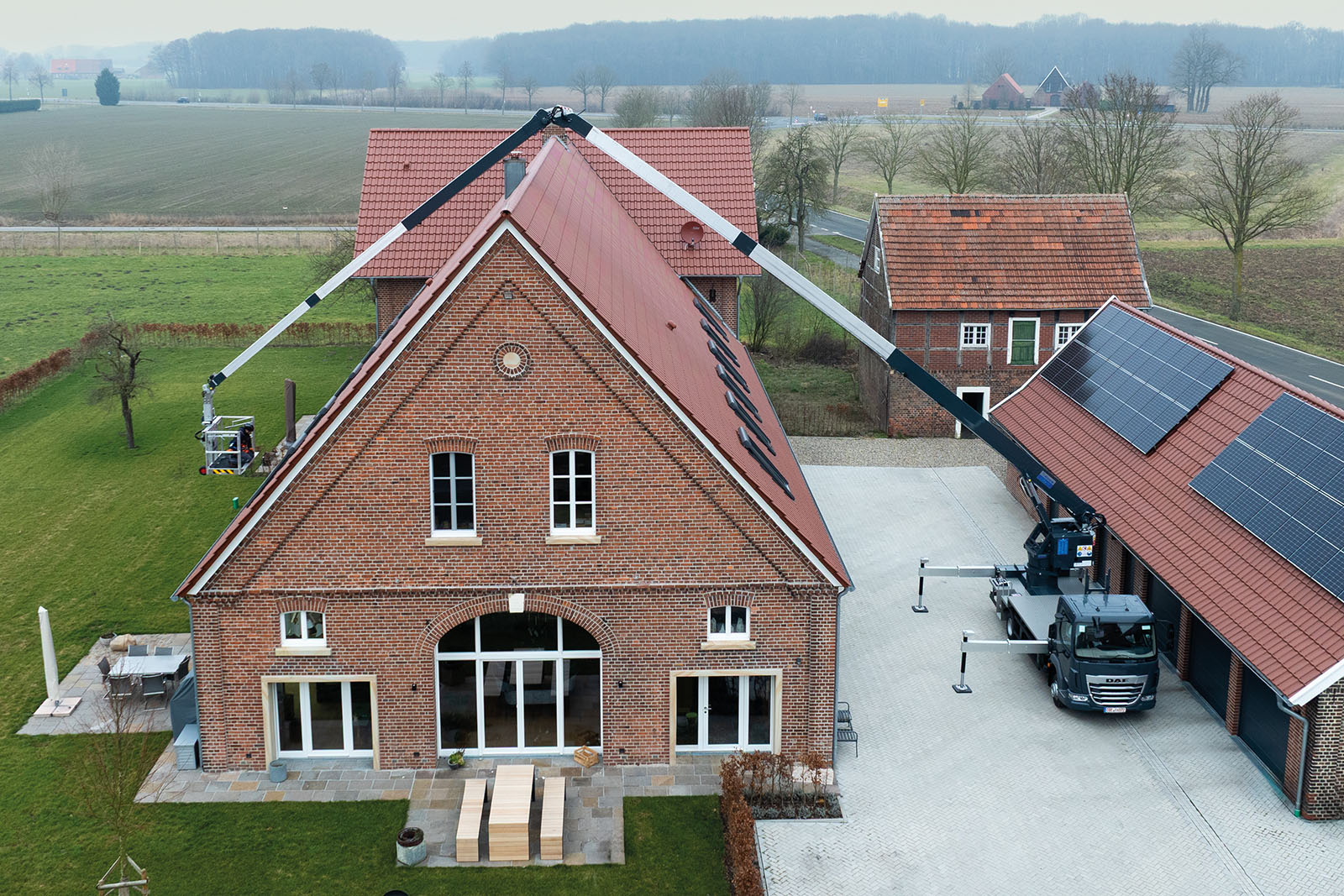

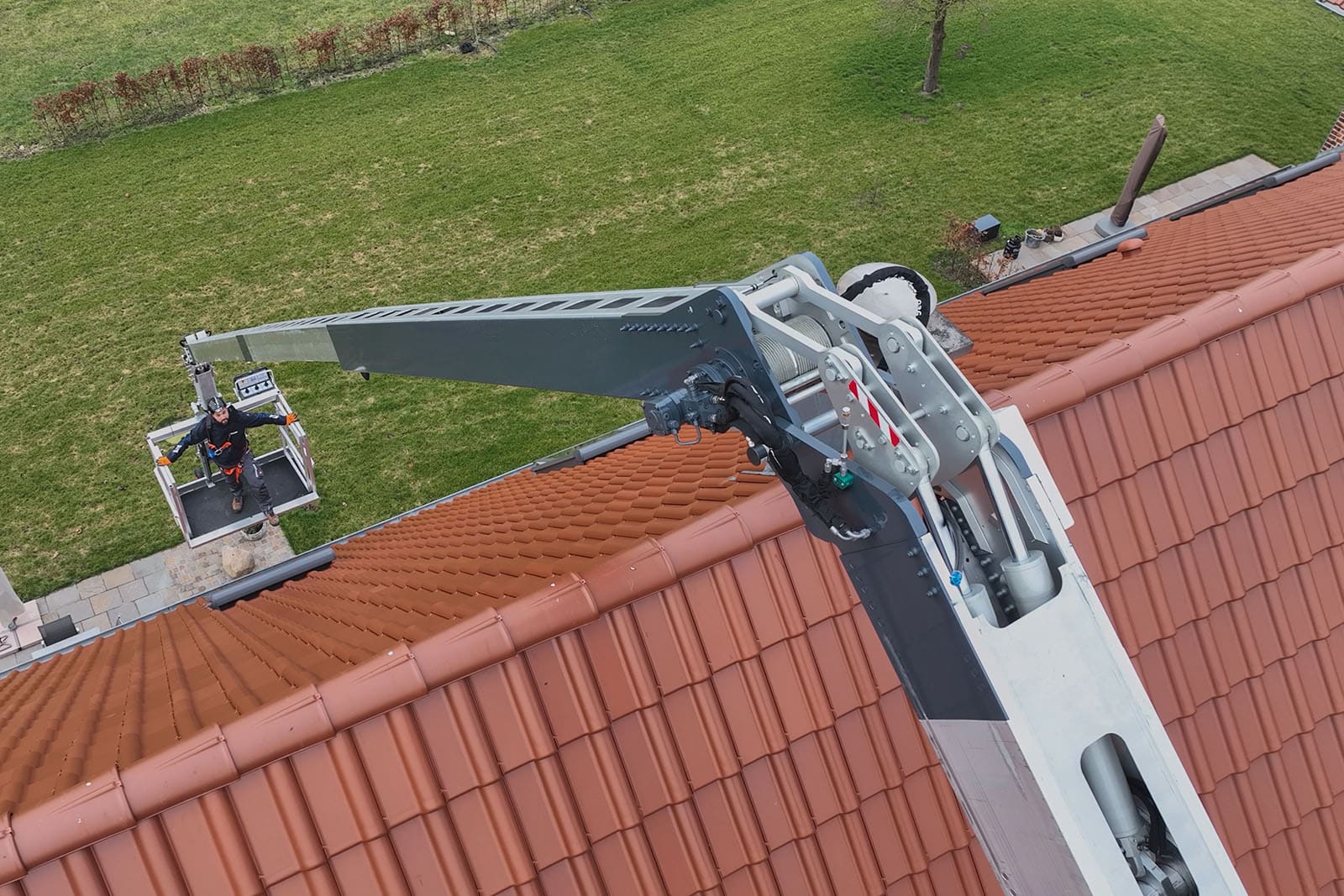

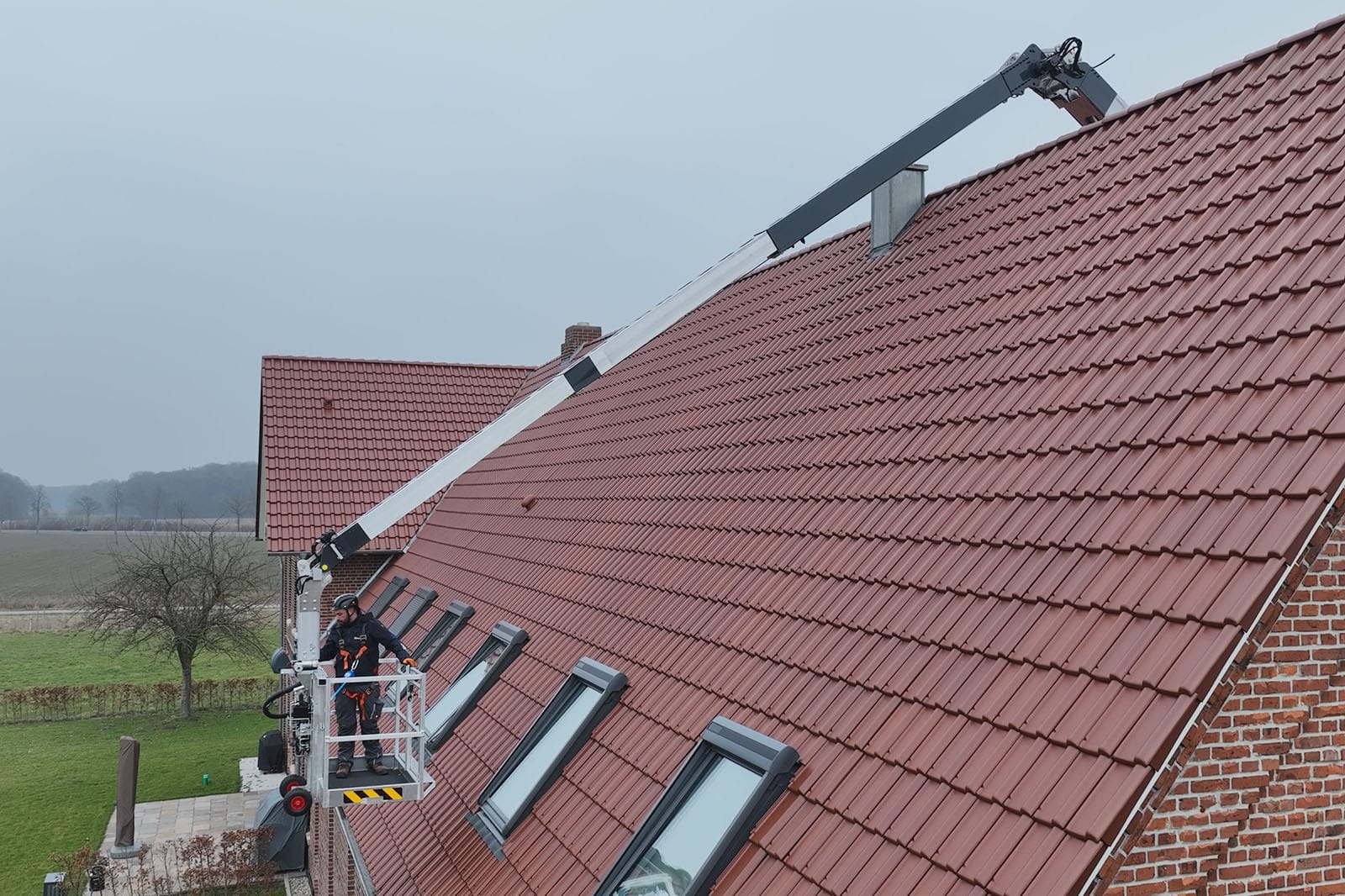

Unique in this weight class is the double telescopic folding jib with rotating work basket. The basket can be rotated 225° on both sides, enabling a 360° working range. Thanks to the folding jib, areas that are difficult to access and the rear sides of buildings can be reached safely even at a flat mast angle.
The Lutz is powered by modern battery technology. A powerful energy storage system enables over ten hours of continuous operation and ensures quiet, low-emission use – ideal for long working days and sensitive locations.
- Condition
- Novo
- Working height
- 32.5 m
- Reach to the diagonal
- 23.0 m

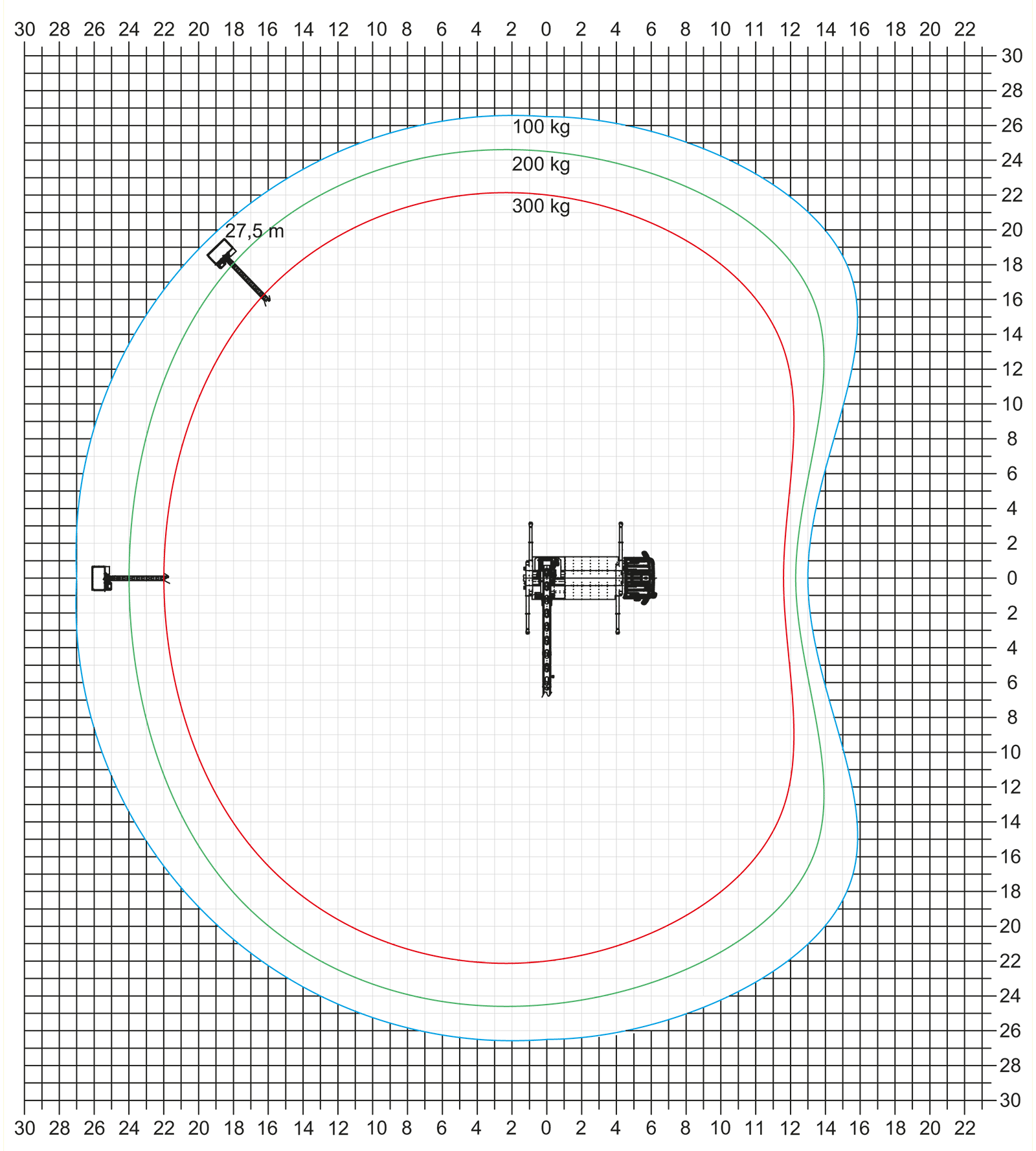

- Range to the rear (100 kg)
- 27.0 m
- Range to the side (100 kg)
- 26.5 m
- Basket capacity
- 300 kg
- Total weight
- ≥ 7.5 t
- Swivel range
- unlimited slewing
- Work basket angle of rotation
- +/- 225 °
- Large work basket
- 1.65 x 0.85 m
- Outrigger width (min.)
- 2.71 m
- Outrigger width (max.)
- 6.23 m
- Outrigger width (one-sided support)
- 4.47 m
- Boom
- 4.97 m
- Extension 1 + 2 (hydraulic)
- 4.97 - 11.77 m
