The Rudi21 is an elevating work platform which is extremely flexible due to an additional basket arm and can therefore be used for countless roof and façade works. The 3.5-tonne platform shows its full strength especially when it comes to difficult-to-access locations such as the backs of buildings or sloping roofs, as well as when space is at a premium. Thanks to simple handling and sophisticated technology, the Rudi21 is quick and easy to set up. The user-friendly basket control stand is intuitively easy to operate, its joysticks work extremely sensitively and enable precise control.
Technical specifications
- Condition
- Novo
- Working height
- 21.0 m
- Range to the rear (250 kg)
- 16.4 m
- Range to the rear (100 kg)
- 12.8 m
- Range to the side (100 kg)
- 16.4 m
- Basket capacity
- 250 kg
- Total weight
- 3.5 t
- Swivel range
- unlimited slewing
- Work basket angle of rotation
- max. 180 °
- Large work basket
- 1,40 x 0,70 m
- Outrigger width (min.)
- 2.20 m
- Outrigger width (max., at the front)
- 4.50 m
- Outrigger width (max., at the back)
- 4.25 m
- Outrigger width (one-sided support)
- 3.35 m
- Drive-through height
- 3.00 m

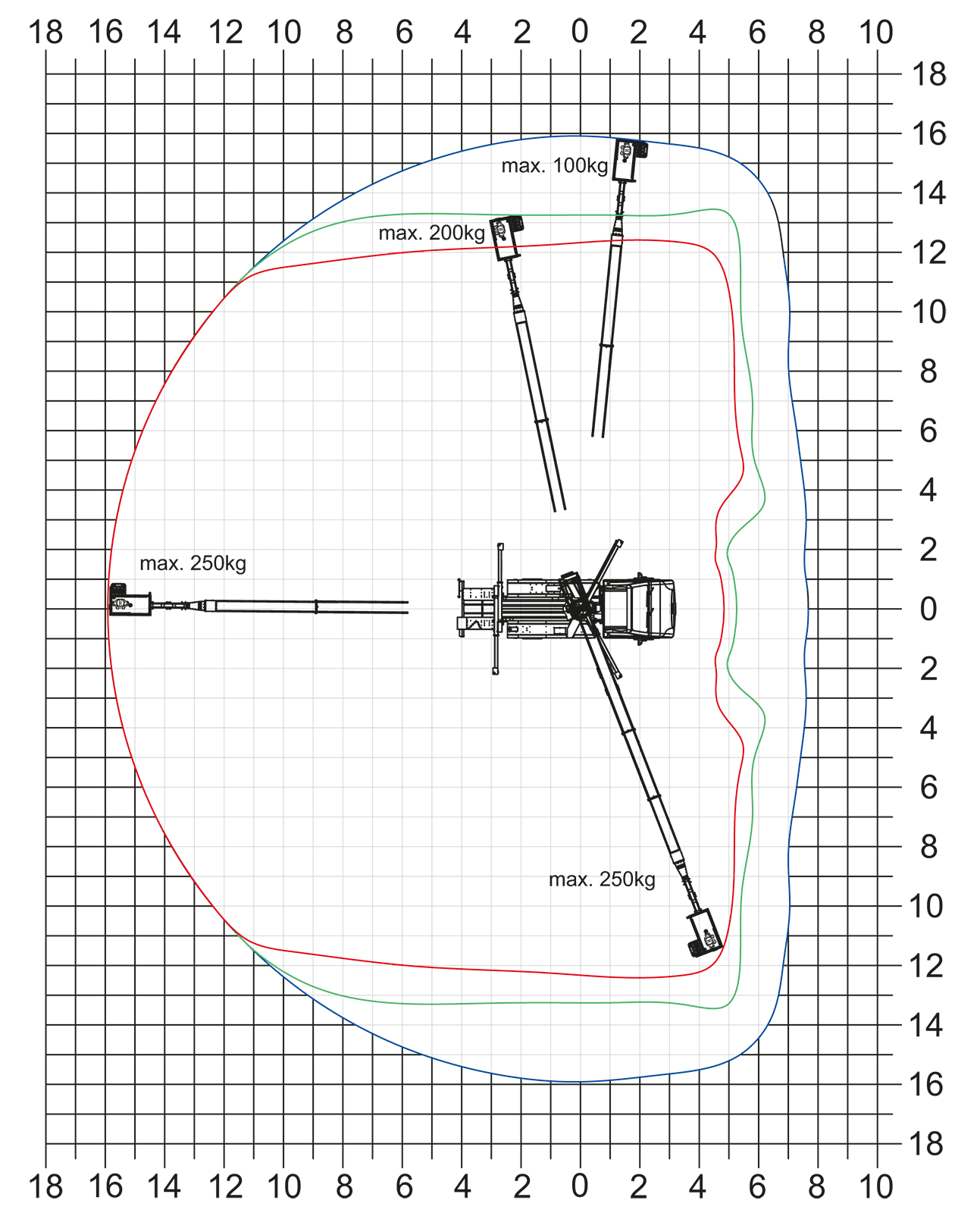

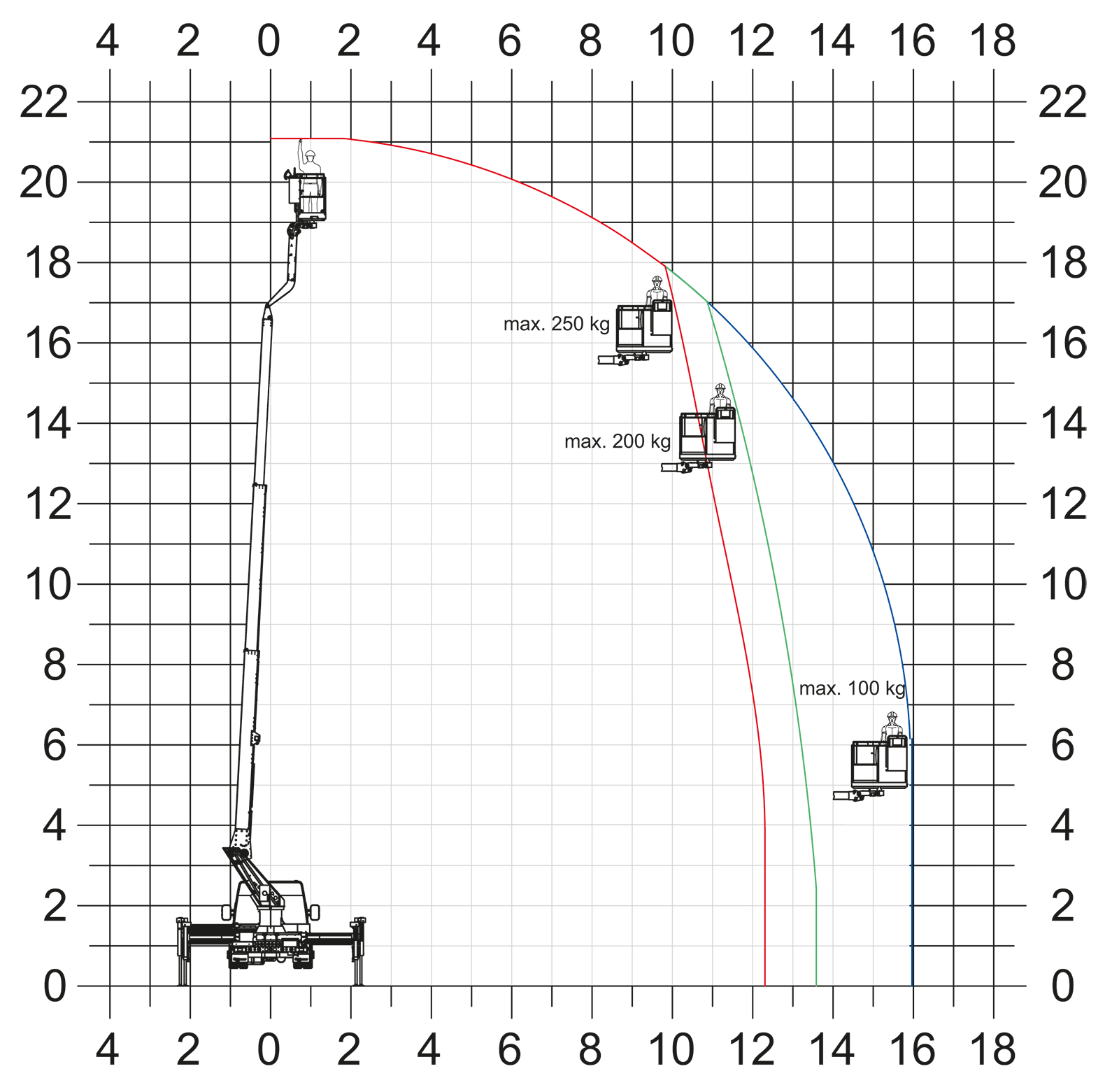

Load chart
Load

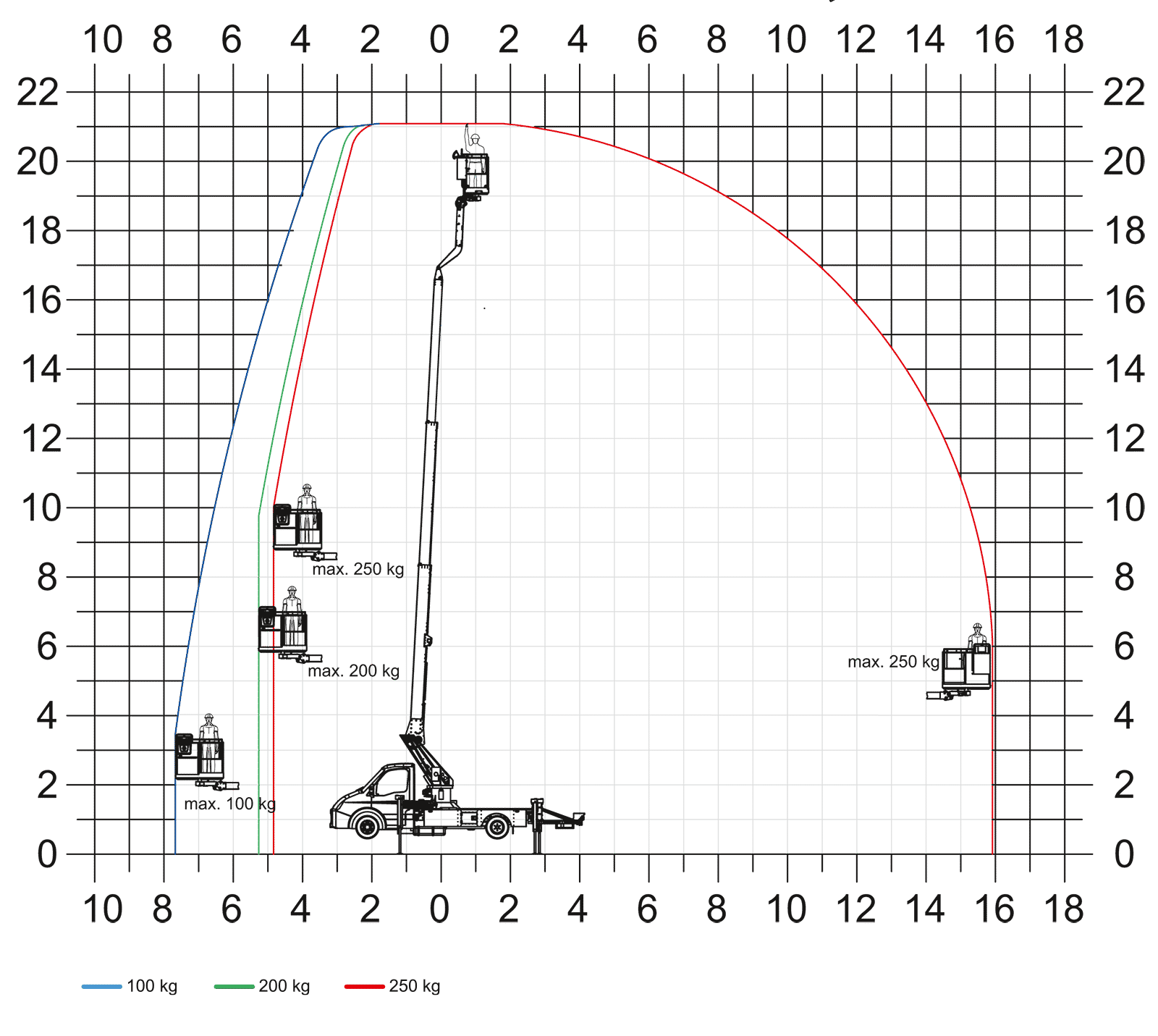

Platform
