The K760 is equipped with a double hydraulically telescopic folding jib, where the first two elements can be extended over a length of 5.00 to 11.65 m via the radio remote control. This makes the crane set-up and the application possibilities even more comfortable and versatile.

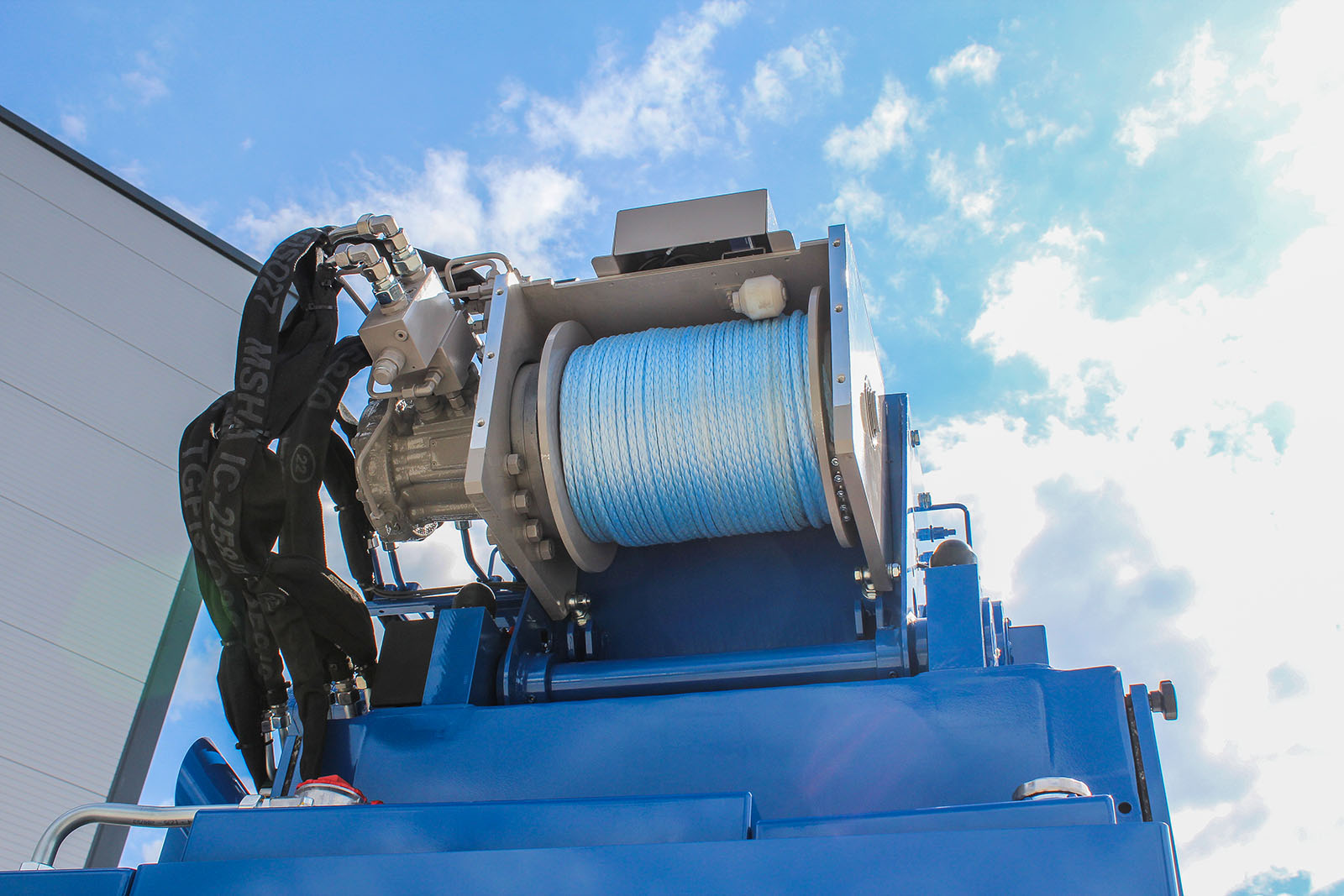

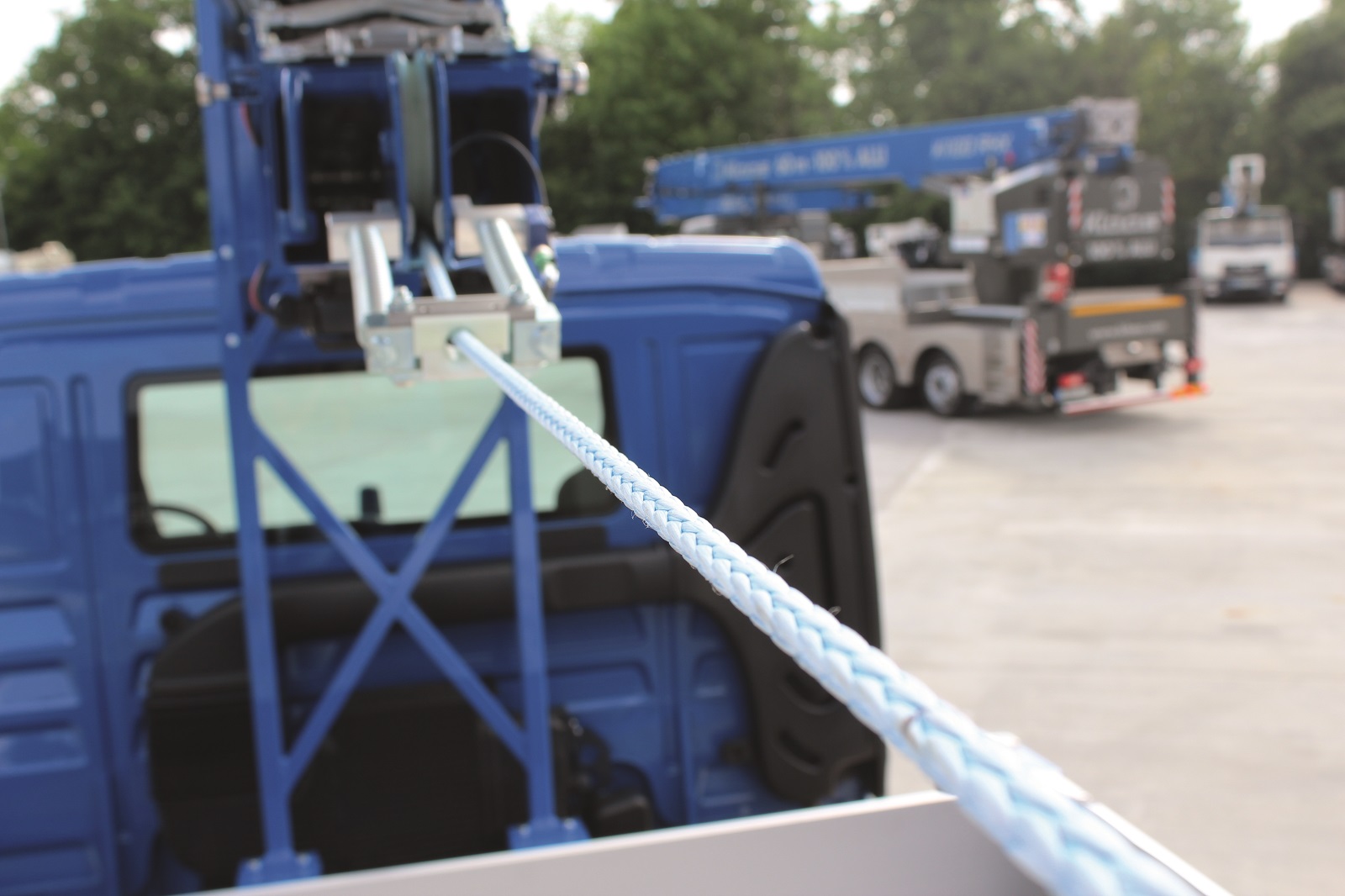

The K760 uses a high-quality, lightweight plastic hoisting rope. This has enabled the performance values to be increased once again and the lifting behaviour to be further improved. With a load of 250 kg, its reach is 32 m, and the all-rounder can lift material weighing up to 500 kg 22 m.
Technical specifications
- Condition
- Novo
- Hook load (stand./opt.)
- 2.0 / – t
- Hook height
- 37.5 m
- Total weight
- ≥ 7.5 t
- Boom length
- 39.00 m
- Outrigger width (min.)
- 3.03 m
- Outrigger width (max.)
- 5.29 m
- Winch capacity
- 2,000 kg
- Boom (2,000 kg - 500 kg)
- 5.00 - 11.65 m
- Extension 3 (350 kg)
- 13.65 m
Load chart

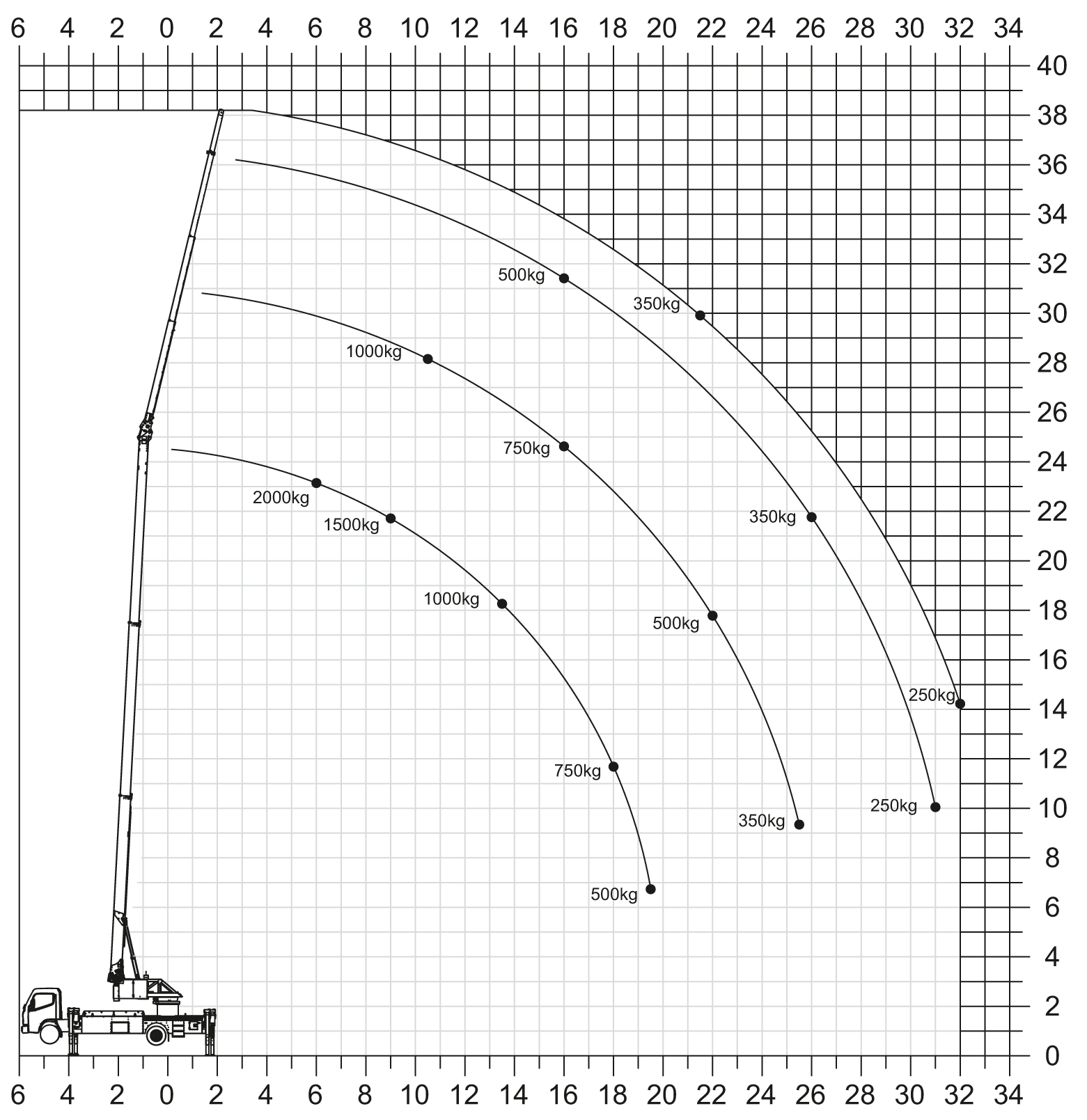

Load

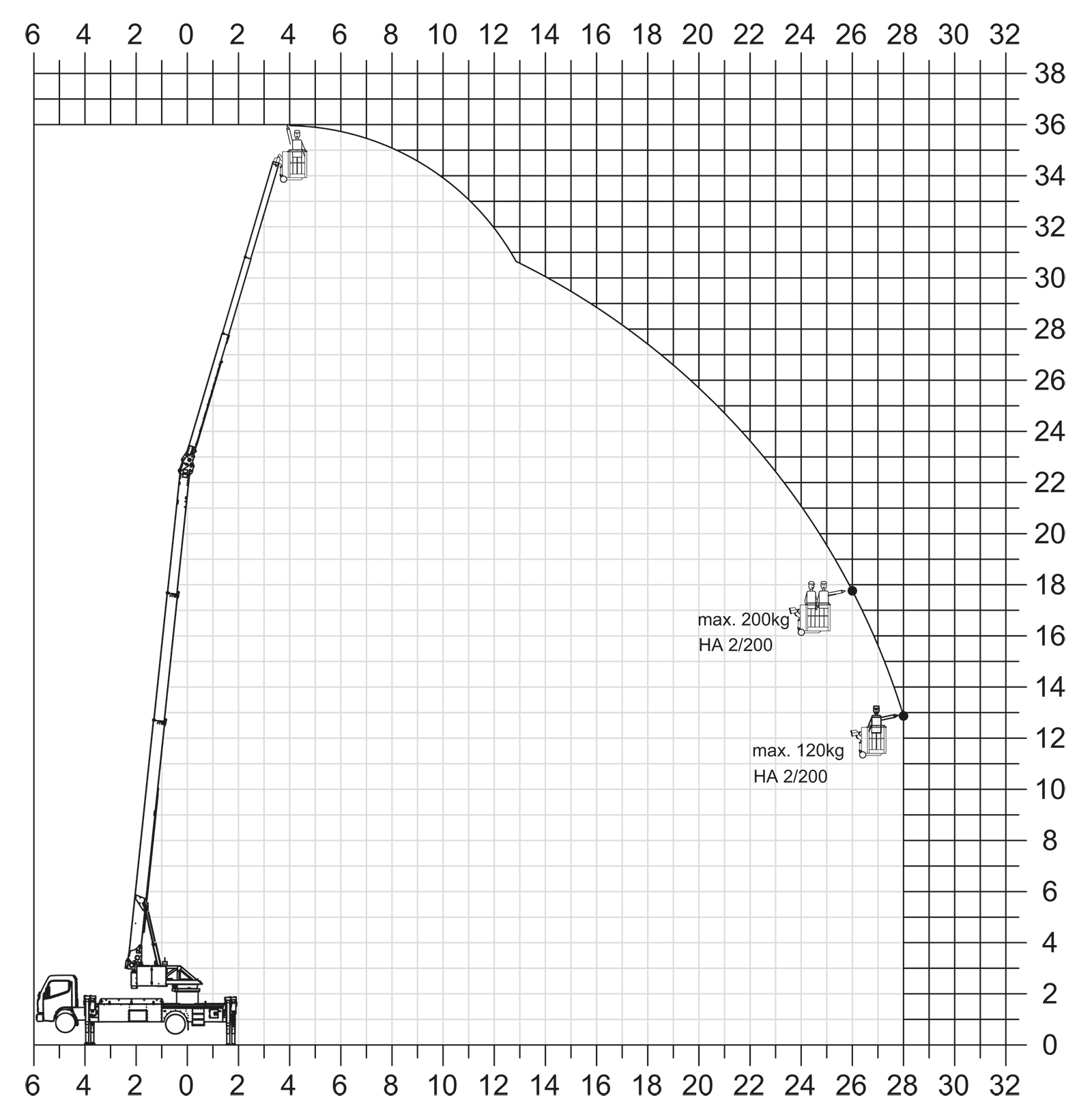

Platform
