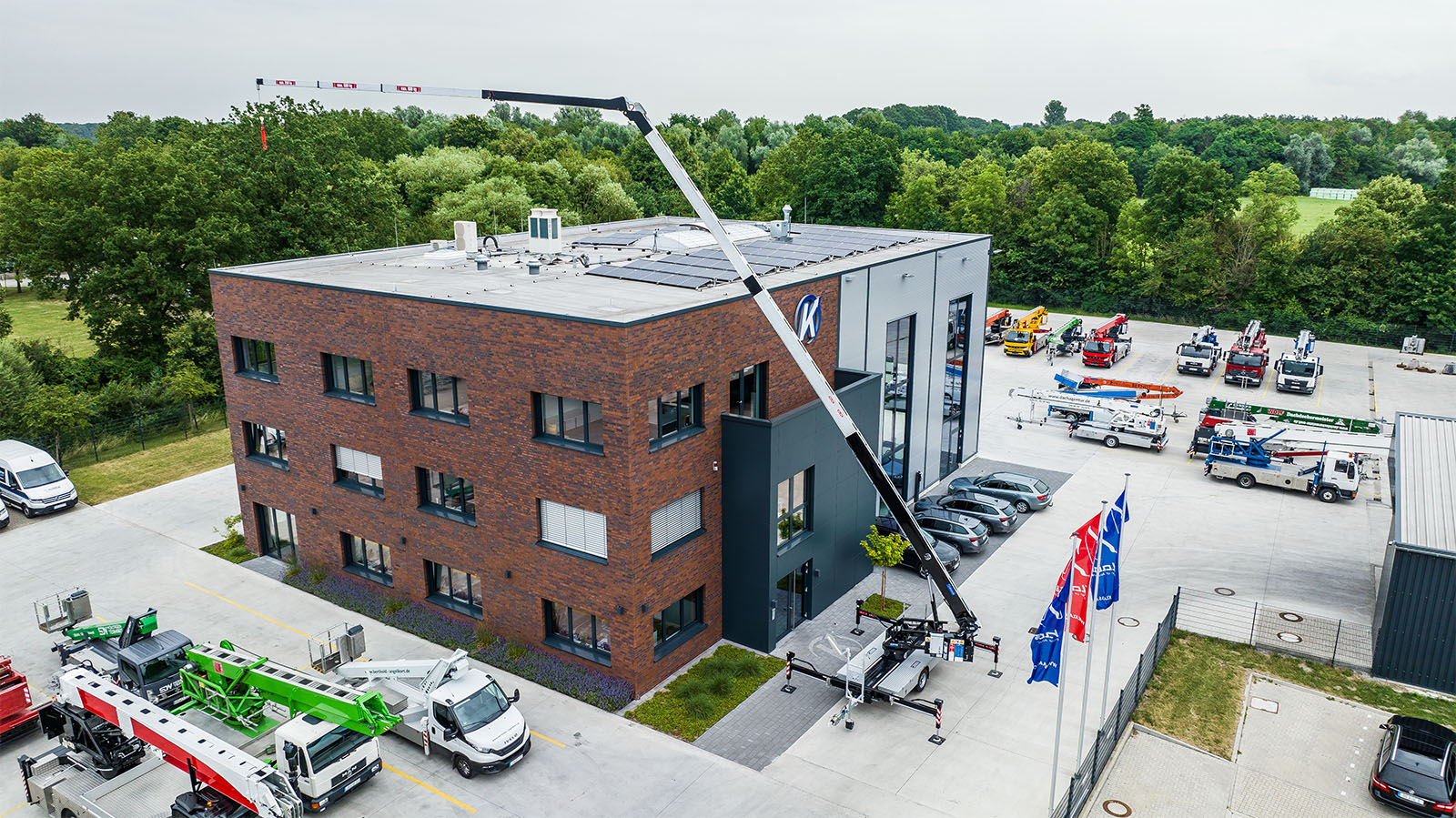

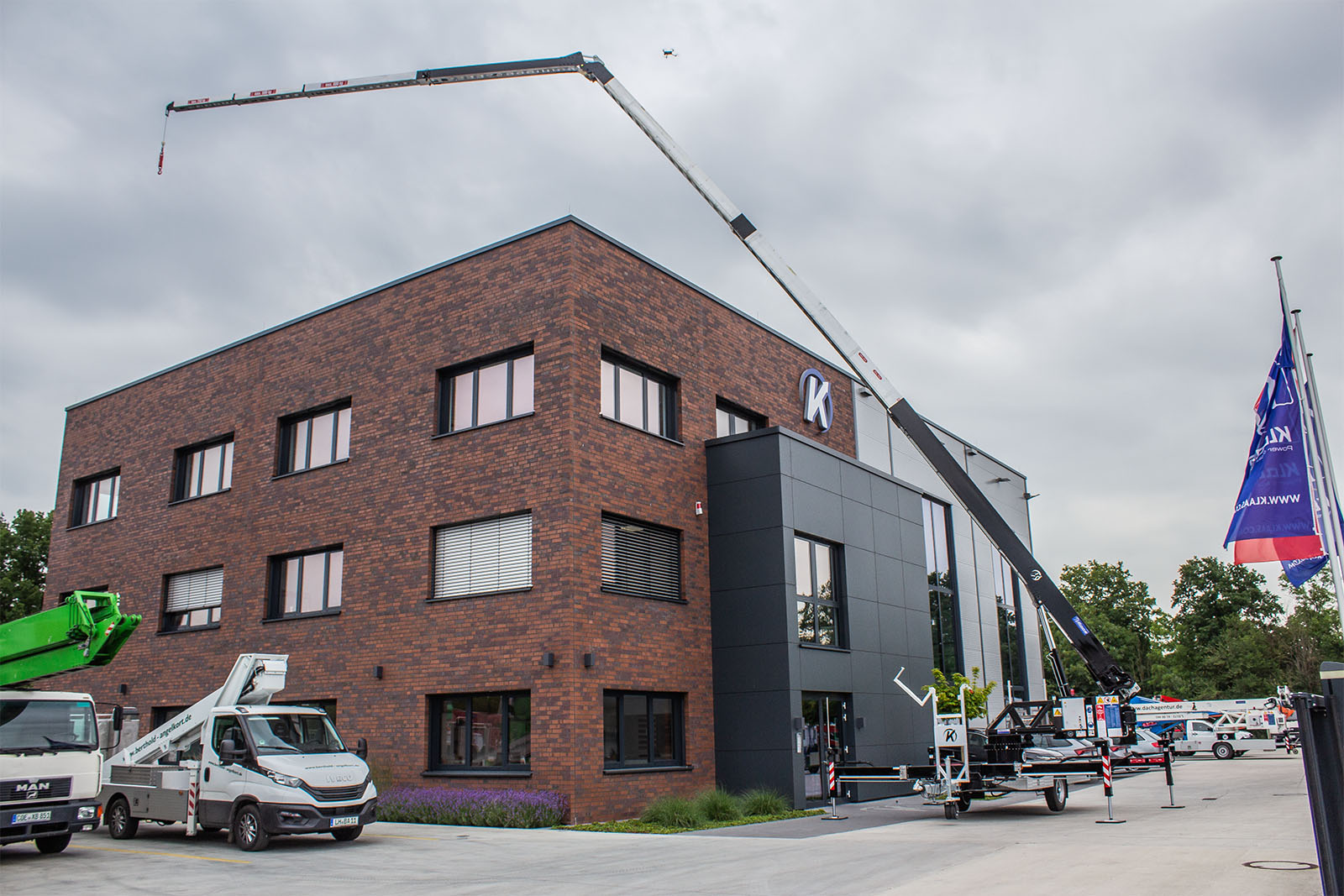

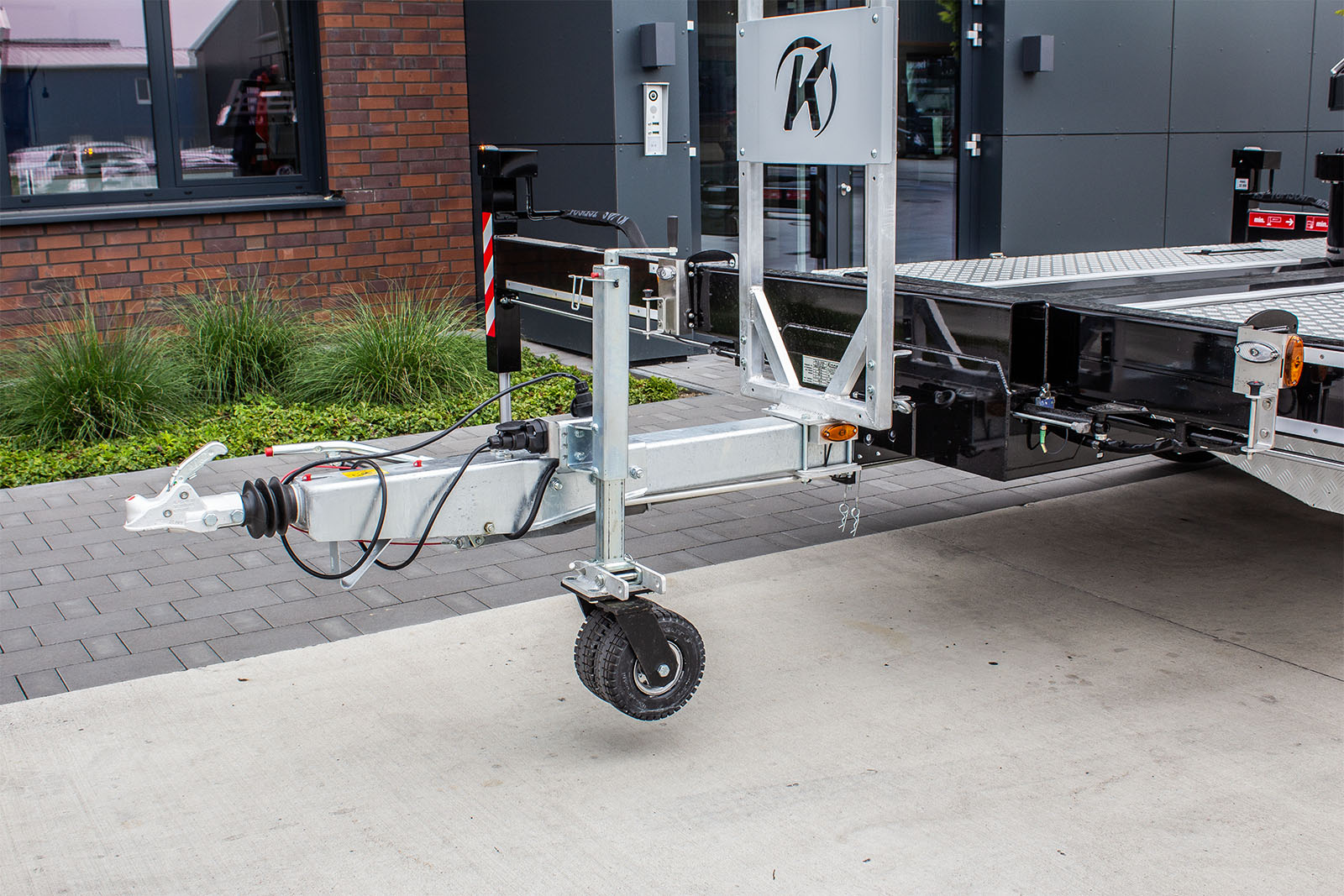

The K23-33 City with a hook height of 33 m has been one of Klaas’ most popular trailer cranes for many years. With its lateral range of 23 m with a load of 250 kg, it features an enormous radius of action. The aluminium crane can be converted into a work platform in a few minutes without tools, thus enabling varied, safe work on the building site. Thanks to its self-drive mechanism it is able to manoeuvre into suitable gap with pinpoint accuracy and be shortened to 7 m due to its retractable drawbar. As a single axle model with a low net weight of 3.5 t, it is also easy to handle in tight spaces.
Technical specifications
- Condition
- Novo
- Hook load (stand./opt.)
- 1,500 / – kg
- Hook height
- 33.0 m
- Total weight
- ≥ 3.5 t
- Boom length
- 34.10 m
- Outrigger width (min.)
- 2.85 m
- Outrigger width (min., platform mode)
- 3.60 m
- Outrigger width (max.)
- 5.05 m
- Winch capacity
- 1,500 kg
- Boom (1,500 kg)
- 4.98 m
- Extension 1 (800 kg)
- 8.27 m
- Extension 2 (500 kg)
- 10.40 m
- Extension 3 (250 kg)
- 12.31 m
- Vehicle dimensions
- 9.24 x 2.27 x 2.59 m
- Towing capacity
- 3.50 t
Load chart
Load

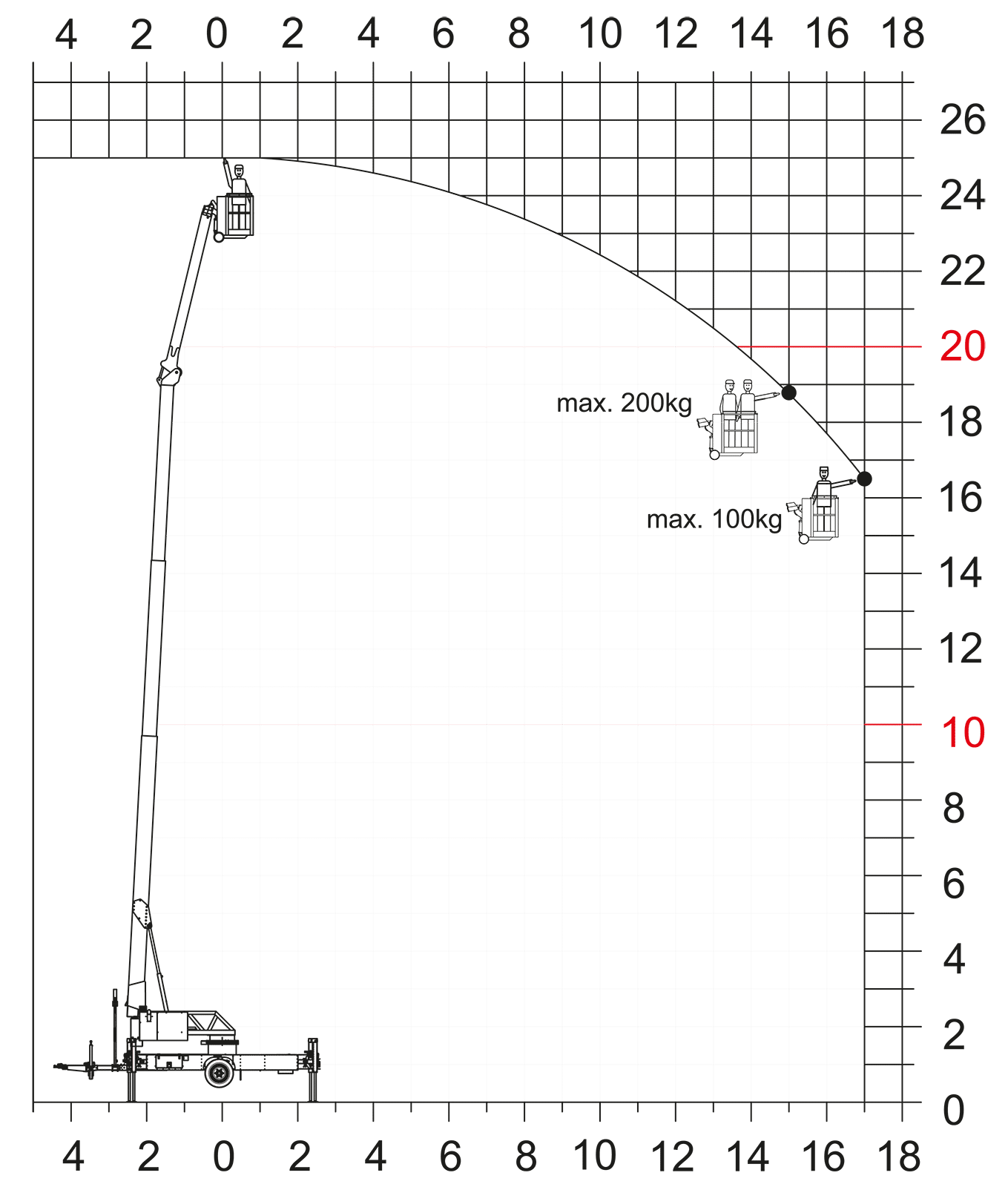

Platform
