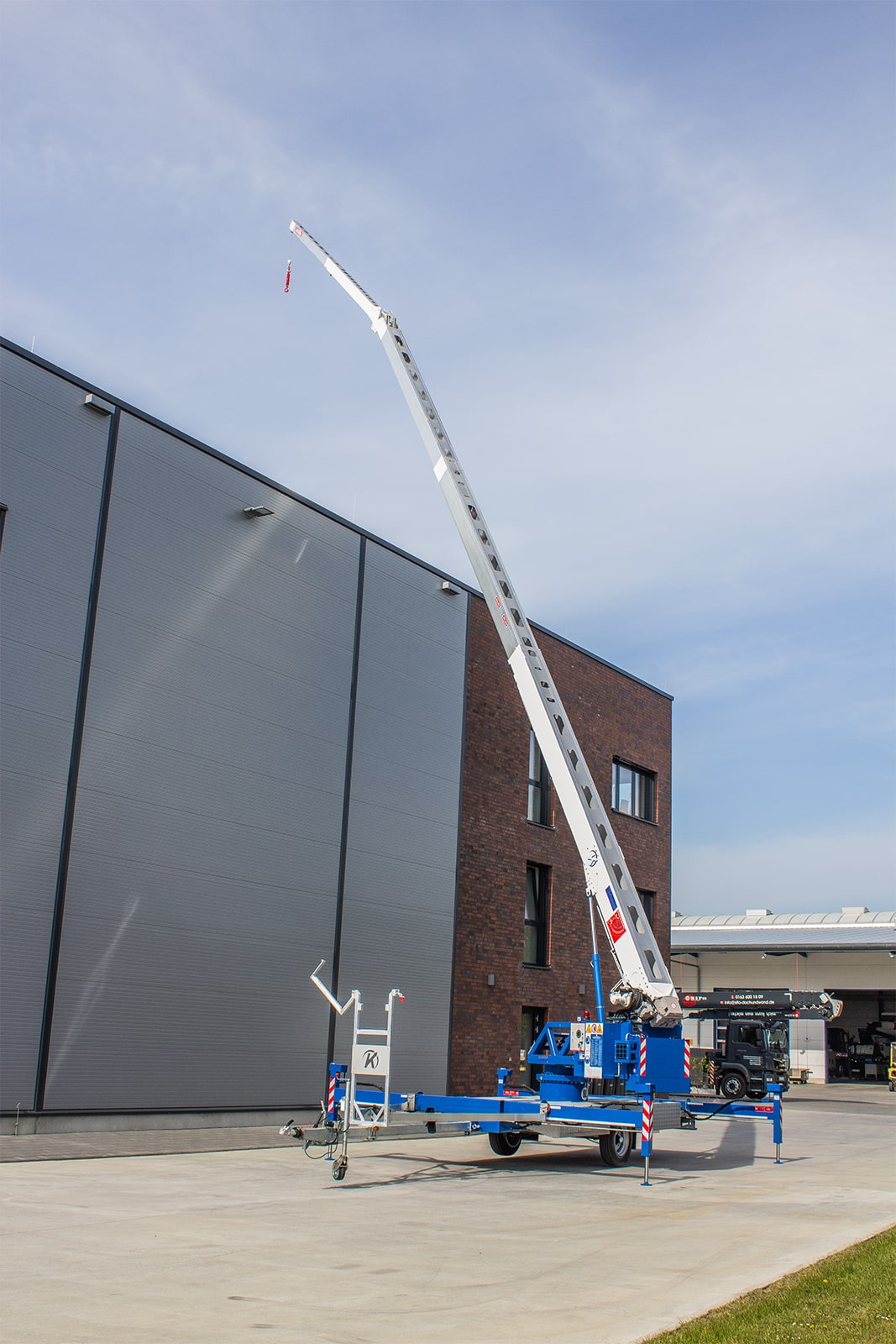

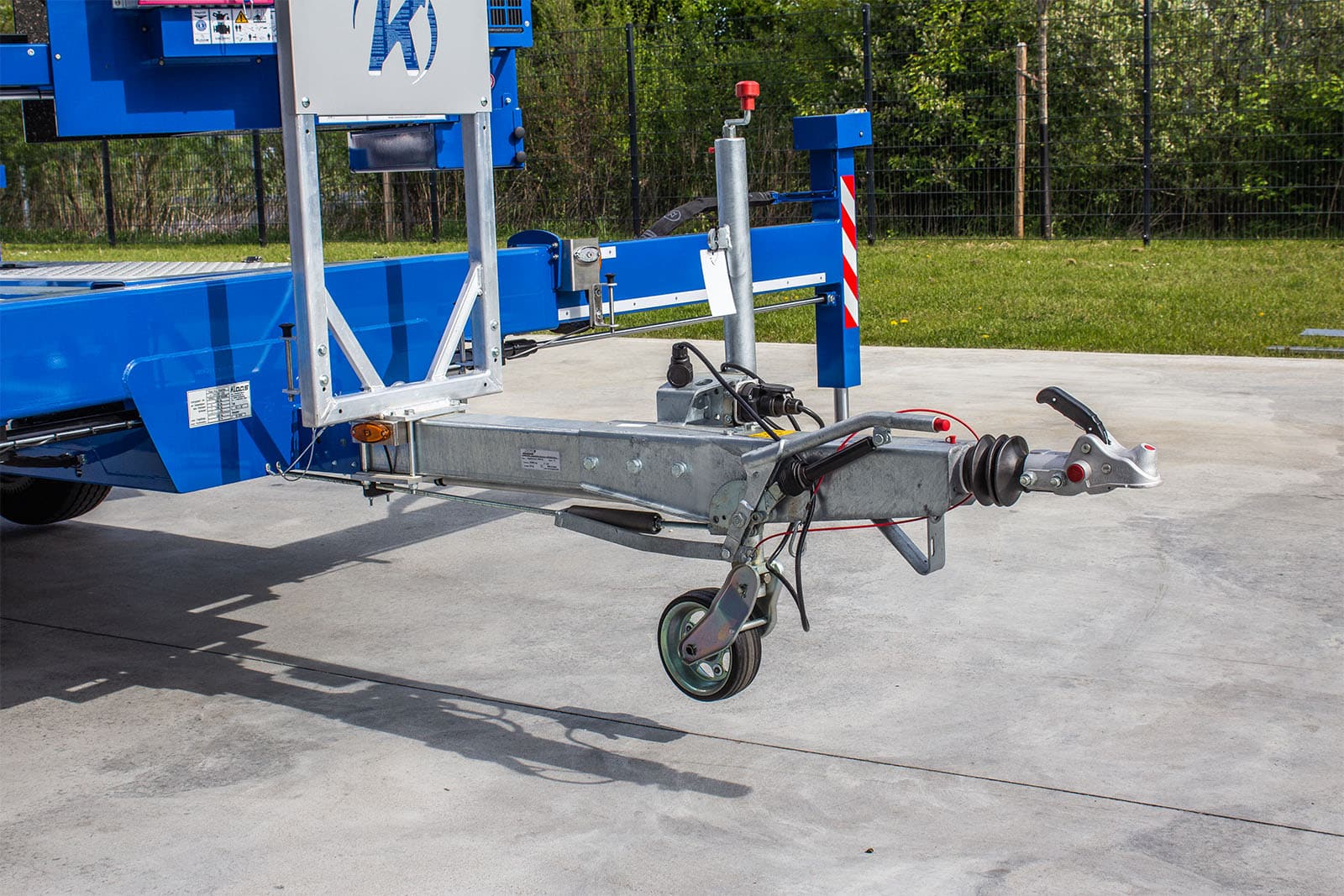

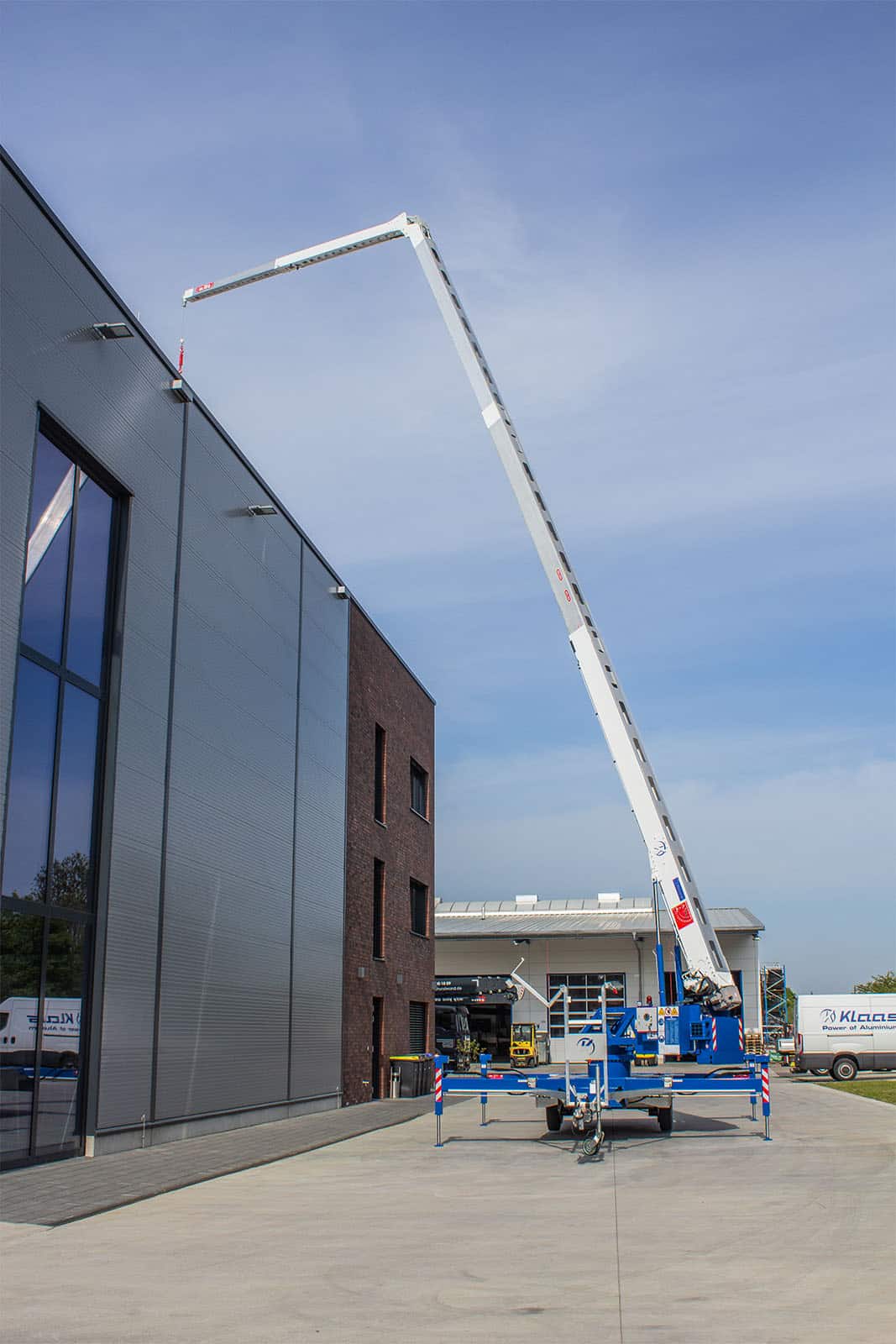

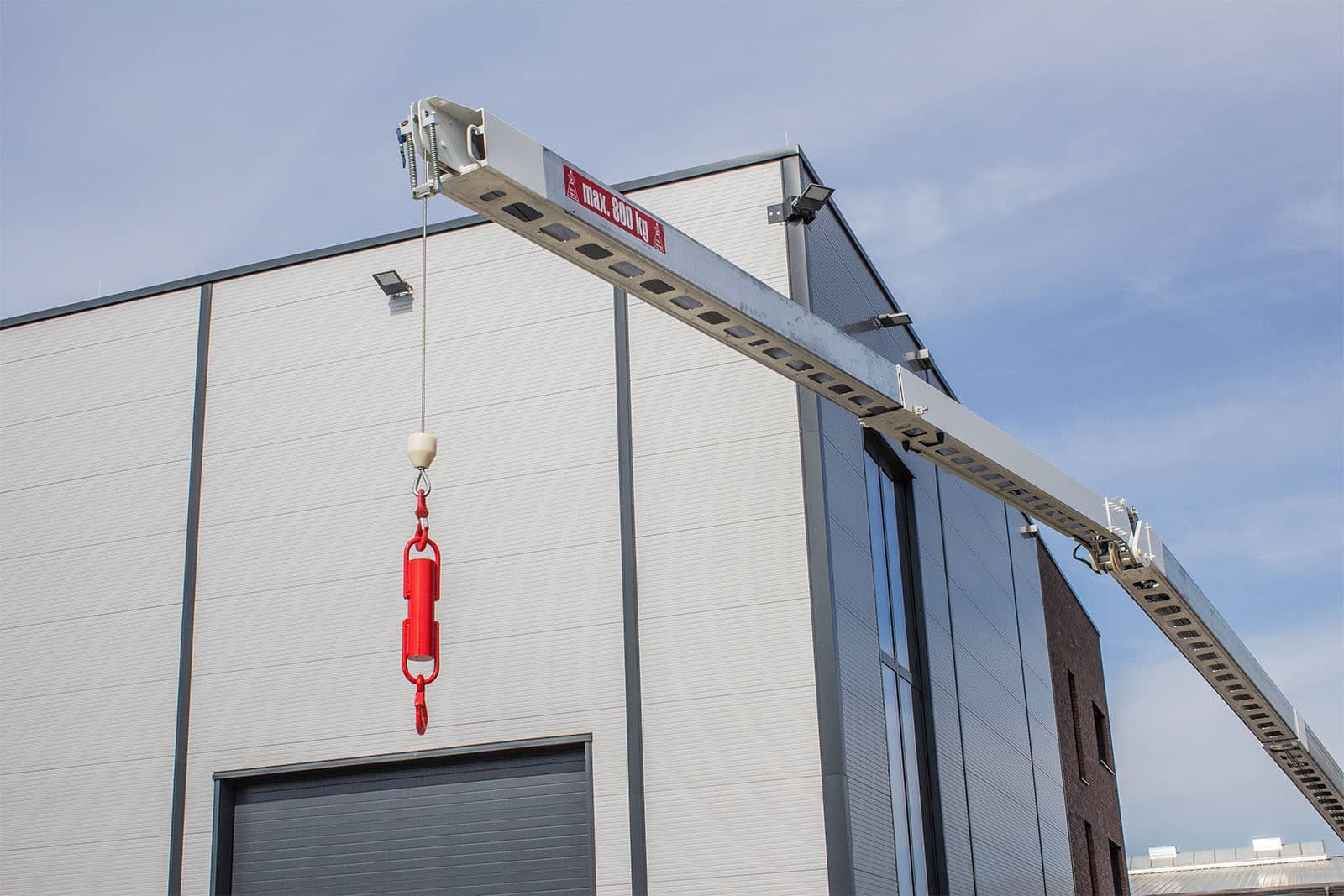

Despite its low net weight of 3.5 t, the K21-30 is an efficient all-rounder. Its tremendously strong fly jib hinge enables loads of up to 1,500 kg to be picked up, whilst it can lift a weight of 250 kg laterally 21 m away. Due to the single-axle operation, the trailer scores highly with great manoeuvrability, optimal weight distribution and more ground clearance. With the help of the self-drive mechanism, the K21-30 can manoeuvre easily on the building site. Thanks to a retractable drawbar, its overall length can be reduced to 7 m, meaning that the crane can also be easily set up in inner-city areas.
Technical specifications
- Condition
- Novo
- Hook load (stand./opt.)
- 1,500 / – kg
- Hook height
- 29.0 m
- Total weight
- ≥ 3.5 t
- Boom length
- 30.80 m
- Outrigger width (min.)
- 2.86 m
- Outrigger width (max.)
- 5.05 m
- Winch capacity
- 1,500 kg
- Boom (1,500 kg)
- 5.46 m
- Extension 1 (800 kg)
- 9.12 m
- Vehicle dimensions
- 9.22 x 2.29 x 2.50 m
- Towing capacity
- 3.50 t

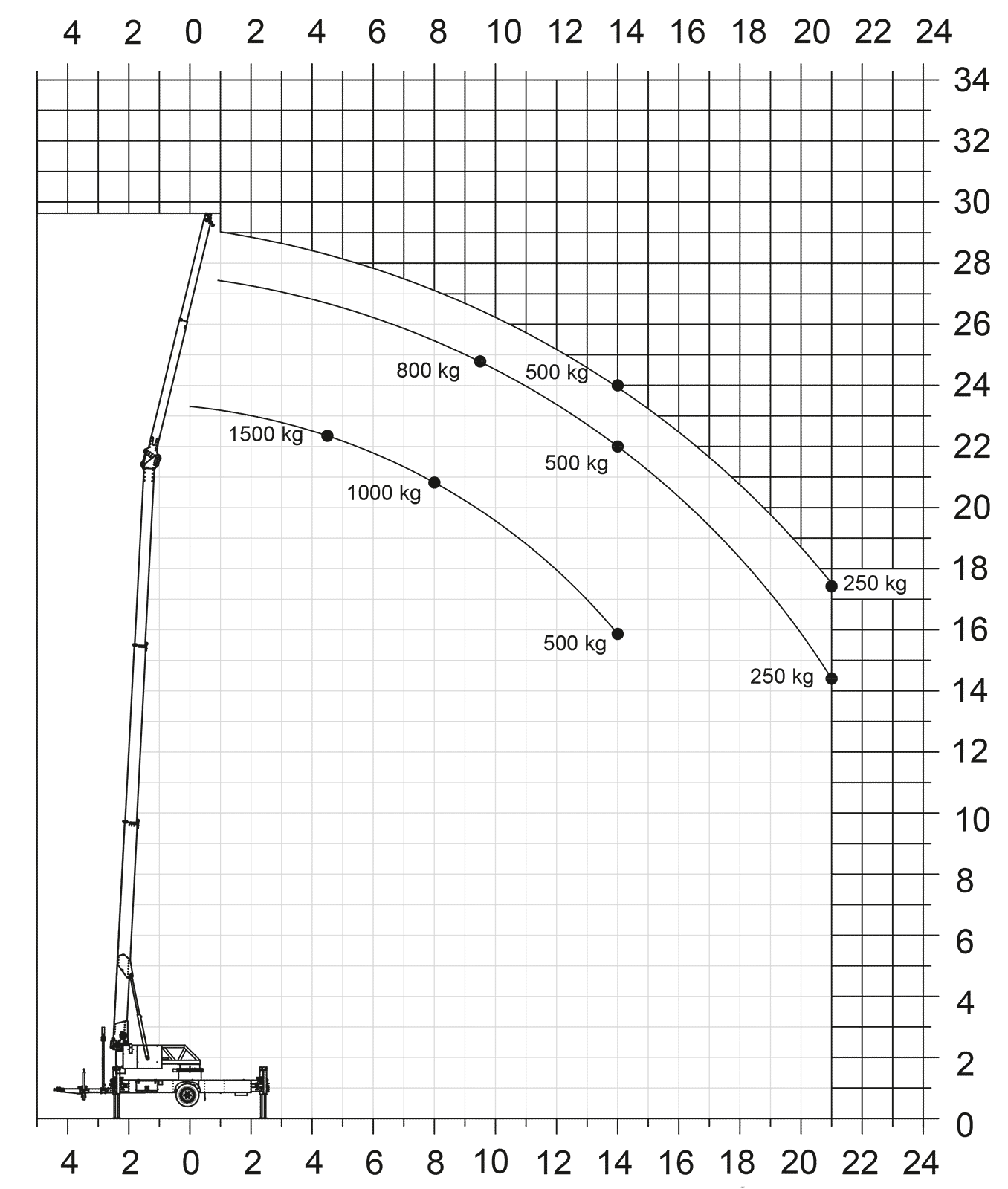

Load chart
Load
