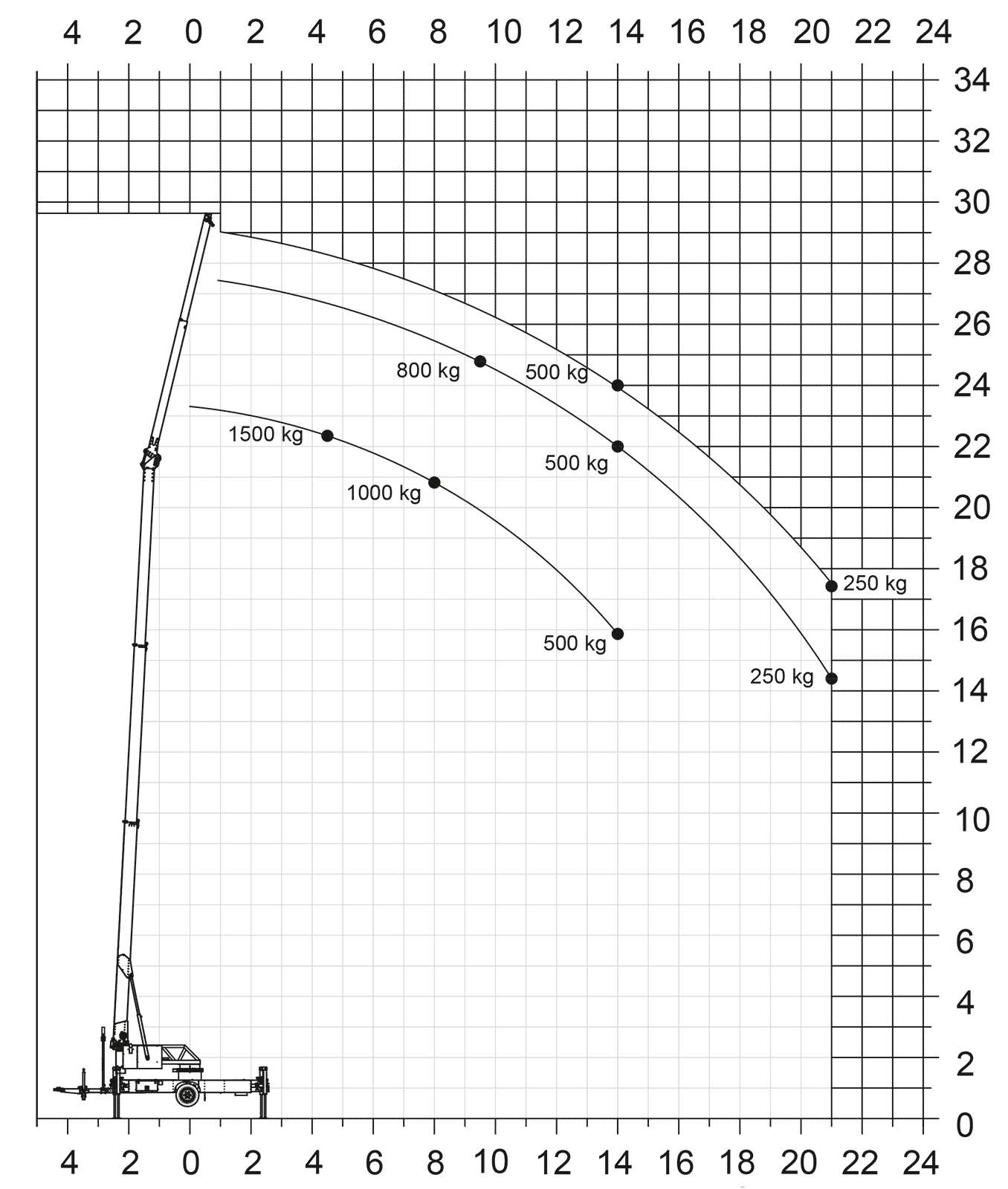

The K300 E was developed purely as an electric crane. The hook height of the trailer crane, which has a towing capacity of 3.5 tonnes, is around 30 m. A strong folding jib joint enables loads of up to 1,500 kg to be lifted. The lateral outreach of 21 m with a weight of 250 kg or 14 m with a load of 500 kg is remarkable. Thanks to its compact dimensions and convenient self-propelled drive, the all-rounder can also be set up when construction sites are narrow or difficult to reach. A retractable drawbar reduces the required footprint of the crane to 7 m in length. The K300 E has an automatic levelling system as standard, which regulates the quick and safe set-up of the crane via the remote control. Thanks to automatic height levelling of the support cylinders, the trailer is stable even on uneven terrain. All in all, the K300 E is an ideal crane for tradesmen who mainly work in the single and small multi-family house sector and who appreciate pleasant working conditions without background noise.
- Condition
- Novo
- Hook load (stand./opt.)
- 1,500 / – kg
- Hook height
- 29.0 m
- Total weight
- ≥ 3.5 t
- Boom length
- 30.70 m
- Outrigger width (min.)
- 2.86 m
- Outrigger width (max.)
- 5.05 m
- Winch capacity
- 1,500 kg
- Boom (1,500 kg)
- 5.46 m
- Extension 1 (800 kg)
- 9.12 m
- Vehicle dimensions
- 9.22 x 2.29 x 2.50 m
- Towing capacity
- 3.50 t
